WEDO Beryllium Copper Chisel Non-Sparking Pneumatic Chisel Bam/FM/GS Certified

WEDO TOOLS CO.,LTD
  • Chisel Type：Pneumatic Chisel
  • Material：Beryllium Copper
  • Color：Golden Yellow
  • Customized：Customized
  • Condition：New
  • Transport Package：Plastic Bag,Box,Carton,Pallet

Base Info

  • Model NO.：BE226
  • Trademark：WEDO
  • Origin：China
  • HS Code：8203400000
  • Production Capacity：30000 Piece Per Year

Description

SIZE Beryllium CopperL(mm)B(mm)H(mm)N.W.(g)BE226-10021012512117BE226-10041017512168 Above item no. is only for Beryllium Copper material, Besides Beryllium Copper, WEDO also supply in Aluminium Bronze below are differences of two material.
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.

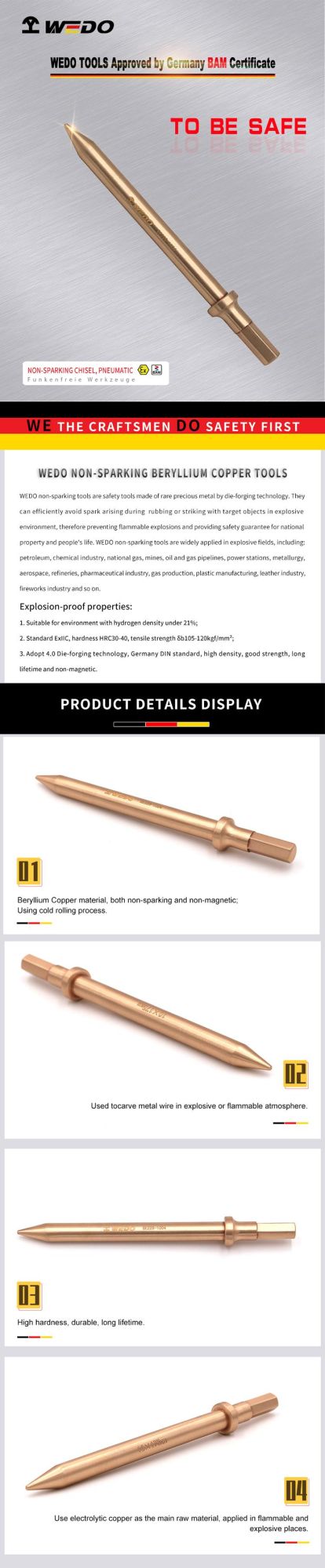

DETAILS AND APPLICATION

WEDO Beryllium Copper Chisel Non-Sparking Pneumatic Chisel Bam/FM/GS CertifiedWEDO Beryllium Copper Chisel Non-Sparking Pneumatic Chisel Bam/FM/GS Certified
