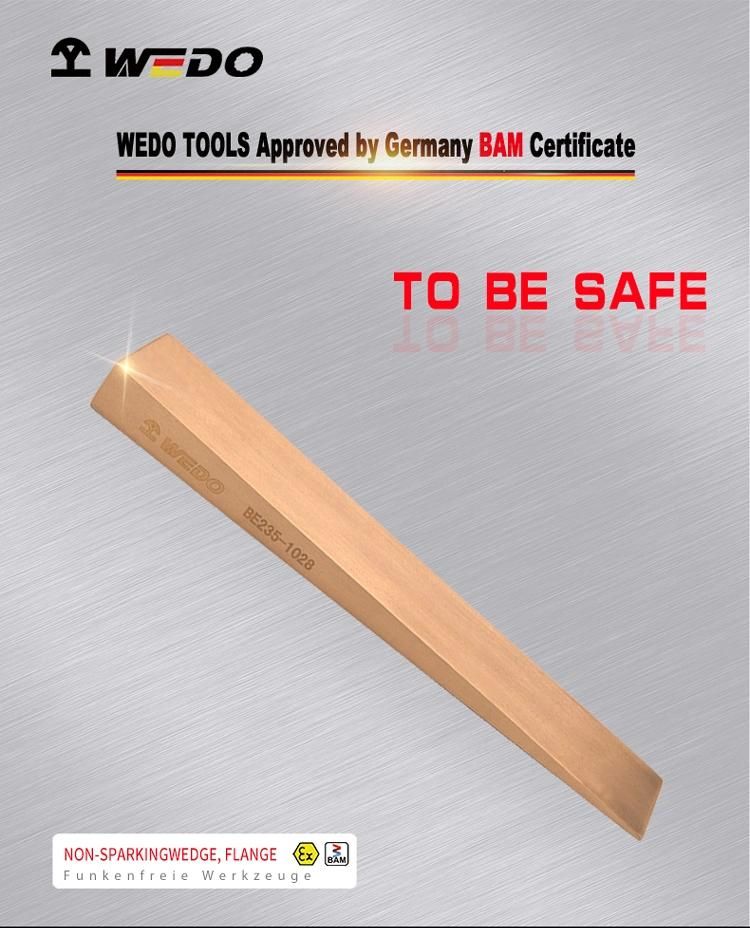

WEDO Beryllium Copper Flange Wedge Non-Sparking/Magnetic Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
- Origin：China
Base Info
- Model NO.：BE235
- HS Code：8205590000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper L(mm) B(mm) H(mm) N.W. (g) BE235-1002 80 13 6 25 BE235-1004 100 50 10 201 BE235-1006 135 50 18 497 BE235-1008 150 40 8 200 BE235-1010 150 25 8 122 BE235-1012 150 25 13 205 BE235-1014 150 50 13 400 BE235-1016 180 32 13 305 BE235-1018 180 50 19 700 BE235-1020 200 20 30 490 BE235-1022 200 30 30 740 BE235-1024 200 40 40 1315 BE235-1026 200 50 12 500 BE235-1028 230 40 20 751 BE235-1030 250 40 30 1230 BE235-1032 30 50 40 2460 Beryllium Copper L(mm) B(mm) H(mm) N.W. (g) BE235-1001 4 3/4 1/2 110 BE235-1003 6 1 1/2 220 BE235-1005 6 1-1/2 3/4 480 BE235-1007 7 2 3/4 755 BE235-1009 8 1-1/2 1 855 BE235-1011 8-1/2 2 1-1/4 1500
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
