High Pressure Hydraulic Gear Oil Pump Hydraulic Power Pump
HEFEI CHANGYUAN HYDRAULIC CO., LTD.- Certification：ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Installation：Vertical
- Material：Aluminum Alloy
- Product Name：Hydraulic Double Gear Pump
Base Info
- Nominal Displacement：32,32 Ml,R
- Rated Pressure：200,200 Bar
- Maximum Pressure：250,250 Bar
- Minimum Speed：600 Rpm
- Rated Speed：2500 Rpm
- Maximum Speed：3000 Rpm
- Volume Efficiency：92 %
- Warranty：1 Year
- Certificate：ISO9001:2008
- Transport Package：Packed in Export Standard
- Trademark：HCHC
- Origin：Anhui, China
- Production Capacity：8000 Sets Per Month
Description
Basic Info.
Nominal Displacement 32/32 Ml/R Rated Pressure 200/200 Bar Maximum Pressure 250/250 Bar Minimum Speed 600 Rpm Rated Speed 2500 Rpm Maximum Speed 3000 Rpm Volume Efficiency 92 % Warranty 1 Year Certificate ISO9001:2008 Transport Package Packed in Export Standard Trademark HCHC Origin Anhui, China Production Capacity 8000 Sets Per MonthProduct Description
Performance Characteristics:
★ High strength aluminum alloy material with light weight and easy installation.
★ The connection form of input shaft includes flat key, rectangle spline and involute spline.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.

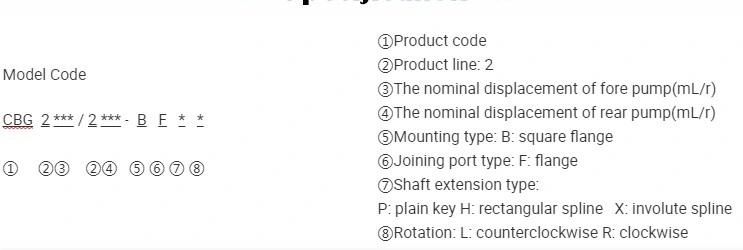

Model Code:

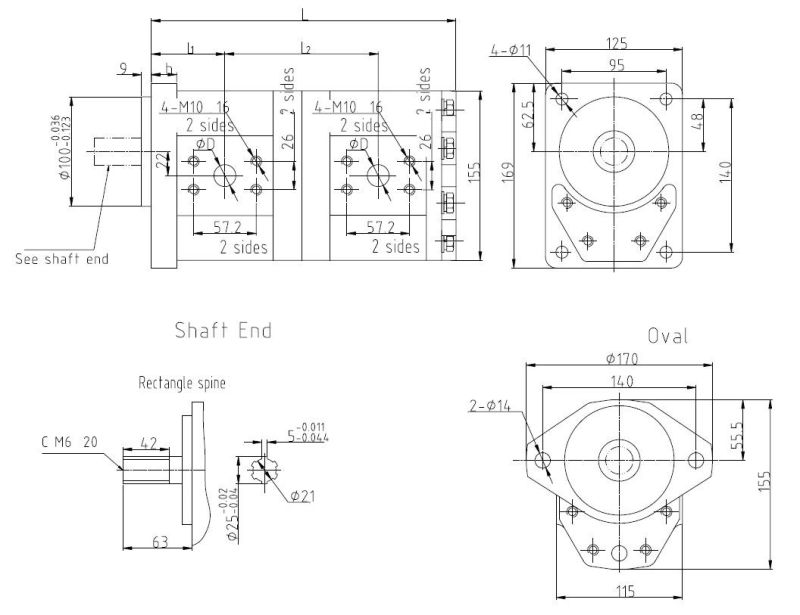

Outline Dimensions:
