• Model NO.：CWDD
• Specification：25mm-350mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82071910
• Production Capacity：2000 Pieces Per Month

Basic Info.

Model NO. CWDD Specification 25mm-350mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per Month

Product Description

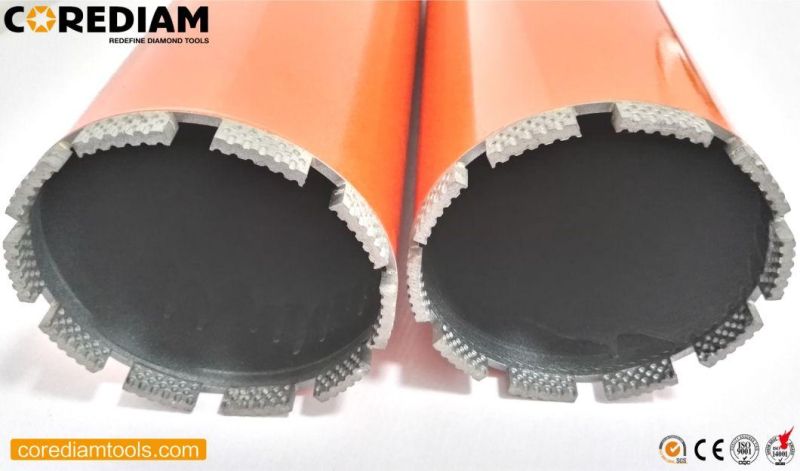

1.Laser welded diamond core drill introduction
1) The wet core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
2) Common sizes of laser welded diamond core drill are ranging 1 '' (25mm) to 14''(350mm) in size.

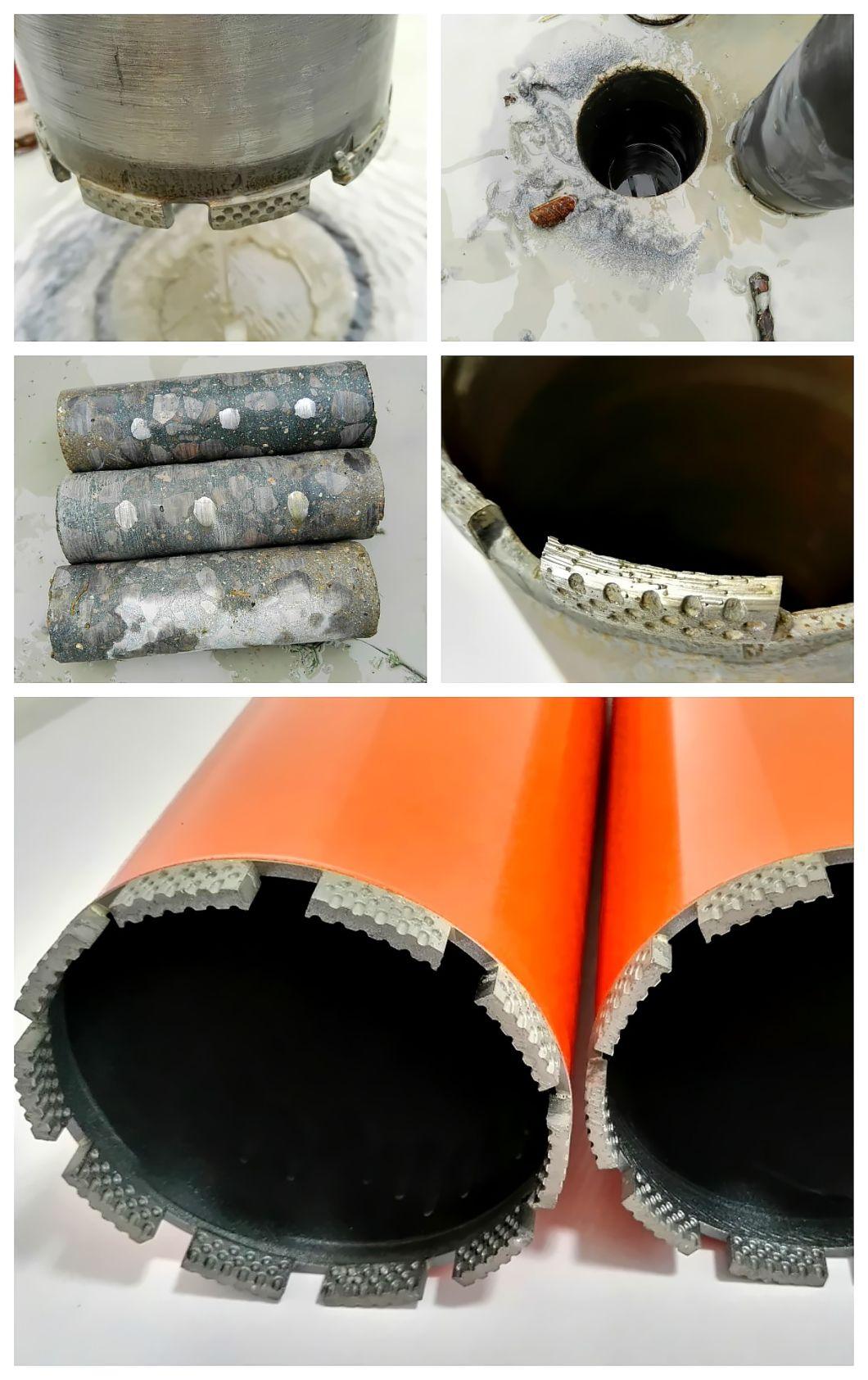

3) The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete and masonry.
4) The segment sharp is dimple segments. It can be installed on Standard Core Driller, Hand-Held Drillers. The quality level is premium.
5) Segments height, working length and connection type can be adjustable on your request.
6) This type of core drill both have brazed (high frequency welding) and laser welded process.




2.Specification

Item No.	Diameter	Segment  Height	Arbor	Effective Length
CWDA02545010	25mm	10	1 1/4"-7	450mm
CWDA03245010	32mm	10	1 1/4"-7	450mm
CWDA03645010	36mm	10	1 1/4"-7	450mm
CWDA04245010	42mm	10	1 1/4"-7	450mm
CWDA05245010	52mm	10	1 1/4"-7	450mm
CWDA06245010	62mm	10	1 1/4"-7	450mm
CWDA06645010	66mm	10	1 1/4"-7	450mm
CWDA07245010	72mm	10	1 1/4"-7	450mm
CWDA07645010	76mm	10	1 1/4"-7	450mm
CWDA08245010	82mm	10	1 1/4"-7	450mm
CWDA09245010	92mm	10	1 1/4"-7	450mm
CWDA10245010	102mm	10	1 1/4"-7	450mm
CWDA11245010	112mm	10	1 1/4"-7	450mm
CWDA12745010	127mm	10	1 1/4"-7	450mm
CWDA13245010	132mm	10	1 1/4"-7	450mm
CWDA15245010	152mm	10	1 1/4"-7	450mm
CWDA16245010	162mm	10	1 1/4"-7	450mm
CWDA17245010	172mm	10	1 1/4"-7	450mm
CWDA18245010	182mm	10	1 1/4"-7	450mm
CWDA20045010	200mm	10	1 1/4"-7	450mm
CWDA25045010	250mm	10	1 1/4"-7	450mm
CWDA30045010	300mm	10	1 1/4"-7	450mm
CWDA35045010	350mm	10	1 1/4"-7	450mm

3.Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan.





4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.

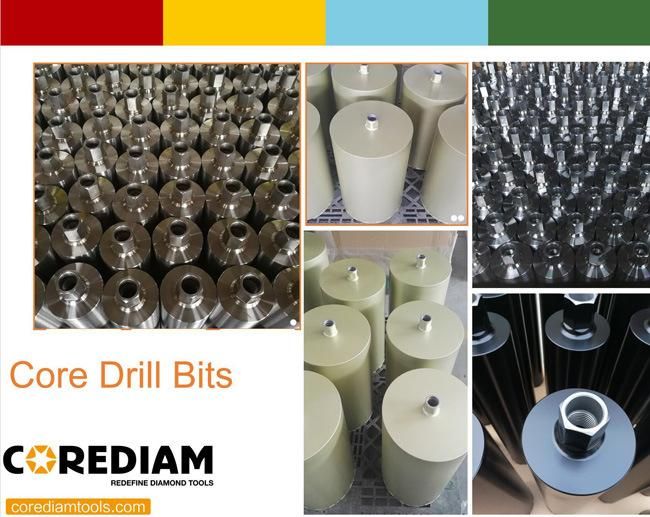

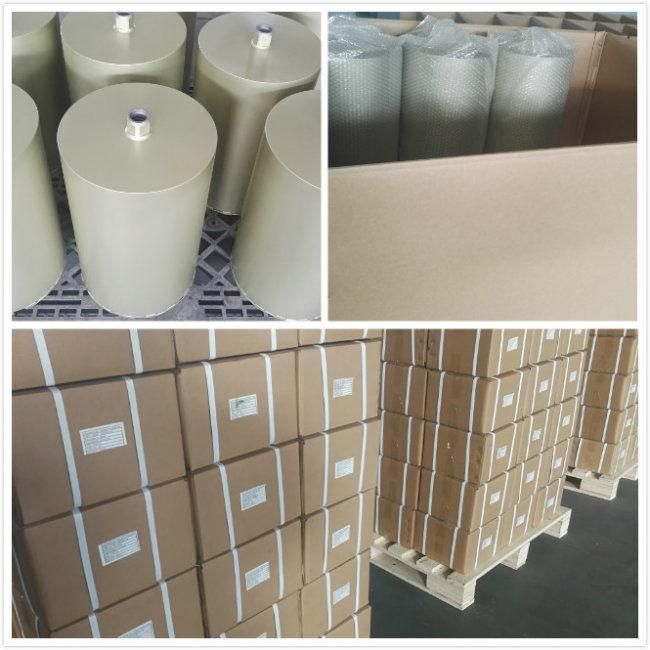

5.Production&Dispatch





6.Corediam service
We accept customized specifications, lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
