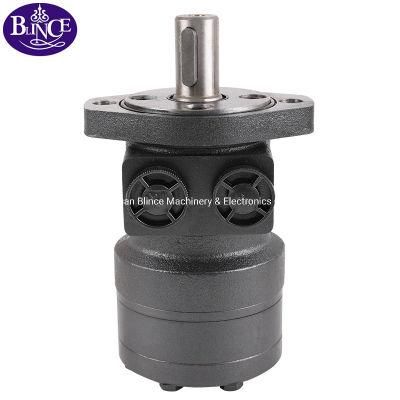

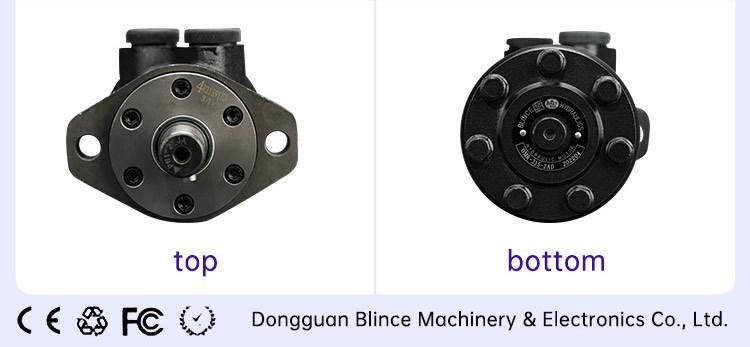

Replacement Eaton Char-Lynn S Series103 Hydraulic Orbital Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Excitation Mode：Excited
- Power Rating：2000W
- Casing Protection：Protection Type
- Number of Poles：4
- Speed：High Speed
Base Info
- Model NO.：Eaton S type hydraulic motor
- Type：Hydraulic Motor
- Usage：Hydraulic Oil
- Application：Plastic Machine, Agriculture Machine
- Motor Flange Shape：Square and Rhombus Flange
- Motor Material：Cast Iron
- Processing：Forging & Cutting &Phosphating
- Motor Shafts：Straight, Splined and Tapered
- Motor Operate：with Electrical Motor,Pump ,Cyclinder
- Warranty：One Year
- Hydraulic Power Units：Vane Pump
- Hydraulic Actuator：Hydraulic Motor
- Transport Package：Industrial Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：60000
Description
Type OMR
36 OMR
50 OMR
80 OMR
100 OMR
125 OMR
160 OMR
200 OMR
250 OMR
315 OMR
375 Displacement (cc/rev) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max speed
rate (rpm)
cont 1085 960 750 600 475 378 310 240 190 155 int 1220 1150 940 750 600 475 385 300 240 190 Max torque
(N.m) cont 72 100 195 240 300 360 360 390 390 365 int 83 126 220 280 340 430 440 490 535 495 Max output
(KW) cont 8.5 9.5 12.5 13.0 12.5 12.5 10.0 7.0 6.0 5.0 int 9.8 11.2 15.0 15.0 14.5 14.0 13.0 9.5 9.0 8.0 Max pressure
Drop(Mpa) cont 14.0 14 17.5 17.5 17.5 16.5 13 11 9 7 int 16.5 17.5 20 20 20 20 17.5 15 13 10 Max.flow
(L/min) cont 40 50 60 60 60 60 60 60 60 60 int. 45 60 75 75 75 75 75 75 75 75 Weight(kg) 6.5 6.7 6.9 7 7.3 7.6 8.0 8.5 9.0 9.5
BLINCE HYDRAULIC MOTOR

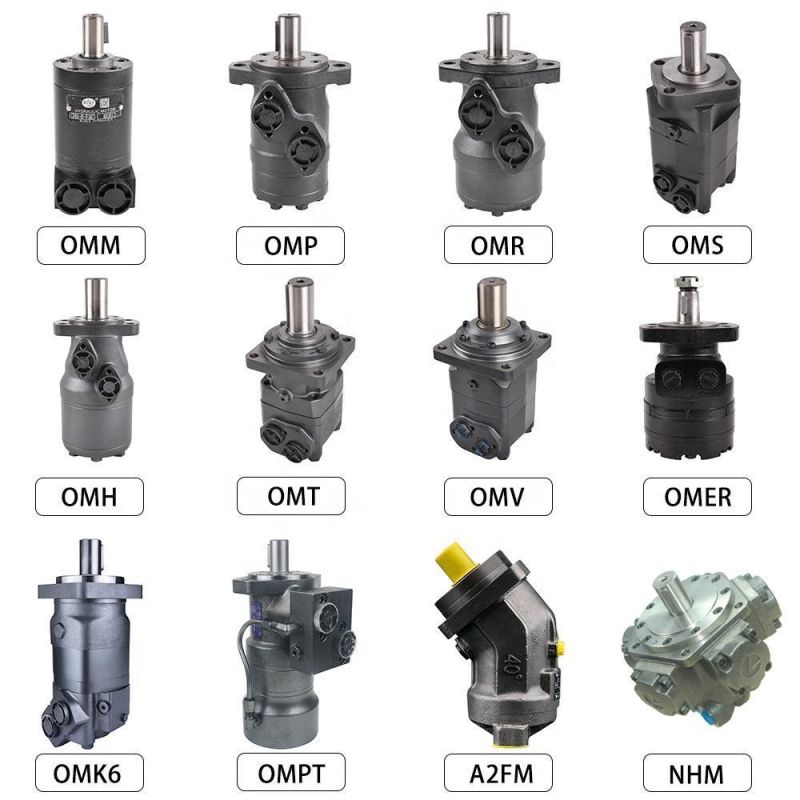

Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V/VQ series / SQP series ) vane Pumps.

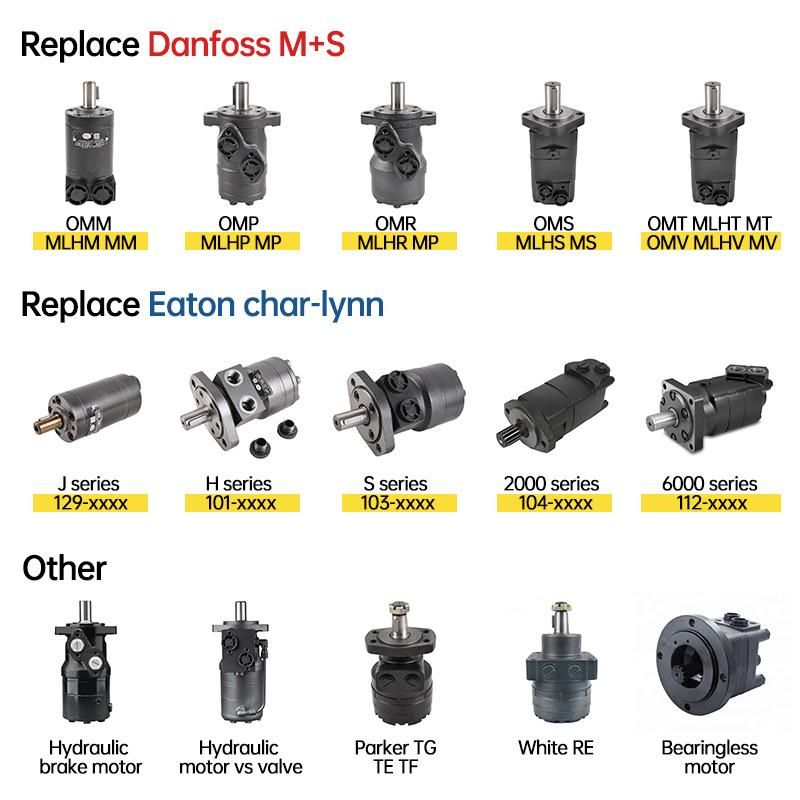

Blince hydraulic motor Can perfectly replace:
Dan :OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV/ DH/ DS series hydraulic motor.
Eaton : J (129-) series, H(101-) series,S(103-) series,T(158-)series,2000(104-) series,6000 series orbit motor
M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.
White : MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parkers : TE/ TG/ TF series hydraulic motor.
Sam Brevini : BGM/ BG/ BR/ HPR/ HT hydraulic motor
Recroth : MGX/ MGP, GXP/ MGR, GMR/ MGS, GMS / MGT,GMT/ MGV, GMV series hydraulic motor.
OUR COMPANY
Dongguan Blince Machinery & Electronics Co., Ltd was established in the year of 2004, which specializing in design, manufacture and sales of hydraulic components. Blince Hydraulics has become the leading manufacturer of hydraulic components, as well as a well known enterprise in the world.
Specializing in design, manufacturing and sales of hydraulic product include hydraulic orbital motor, radial piston motor, hydraulic pump, hydraulic steering control unit, oil cooler, hydraulic system and more, with over 15 years experience on products research and development.
Orbital motor from small OMM type to large torque OMS, OMT and OMV series. Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31.
We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port. It is very convenient for us to arrange shipment by sea.
For hydraulic equipment, please look for Blince!
