• Model NO.：OMP
• Flange Type：Rhomb-Flange,Square-Flange
• Application：Medium and Low Duty Tasks
• Place of Origin：Guangdong, China (Mainland)
• Stock：Rich
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：ISO9001
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：1000 Sets Per Month Meet Your Requirment

TypeOMP
36OMP
50OMP
80OMP
100OMP
125OMP
160OMP
200OMP
250OMP
315OMP
400OMP
500Geometric displacement
(cm3/rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5Max.speed  (rpm)con.15001150770615490383310250192155120
 int.16501450960770615475385310240190150Max.torque (N.m)cont.55100146182236302360380375360385
 int.76128186227290370440460555525560
 peak96148218264360434540550650680680Max.output  (KW)cont.8.010.010.011.010.010.010.08.57.06.05.0
 int.11.512.012.013.012.012.012.010.58.57.06.0Max.pressure
Drop   (Mpa)cont.12.5141414141414119.07.06.0
 int.16.517.517.517.517.517.517.5141410.59.0Max.flow  (L/min)cont.5560606060606060606060
 int.6075757575757575757575Net Weight(kg)5.65.65.75.96.06.26.46.76.97.48.0

Blince order imformation:
Flange:
1)Flange2: 2-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
2)Flange4: 4-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
3)FlangeH4: 4-3/8-16 Square-flange, pilot Ø 44.4× 2.8
4)FlangeH5: 4-M10 Square-flange, pilot Ø 44.4× 2.8

Shaft:
1)ShaftA: Shaft Ø 25, parallel key 8X7X32
2)ShaftC: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
3)ShaftE: Shaft Ø 25.4, splined tooth SEA 6B
4)ShaftR: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
5)ShaftB: Shaft Ø 32, parallel key 10X8X45
6)ShaftF: Shaft Ø 31.75, splined tooth 14-DP12/24
7)ShaftFD: Long shaft Ø 31.75, splined tooth14-DP12/24
8)ShaftG: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
9)ShaftT: Cone shaft Ø 28.56, parallel key B5X5X14
10)ShaftT3: Cone shaft Ø 31.75, parallel key 7.96X7.96X25.4

Drain port:
1)D: G1/2 Manifold Mount 4× M8, G1/4
2)M: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
3)S: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
4)P: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
5)R: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4

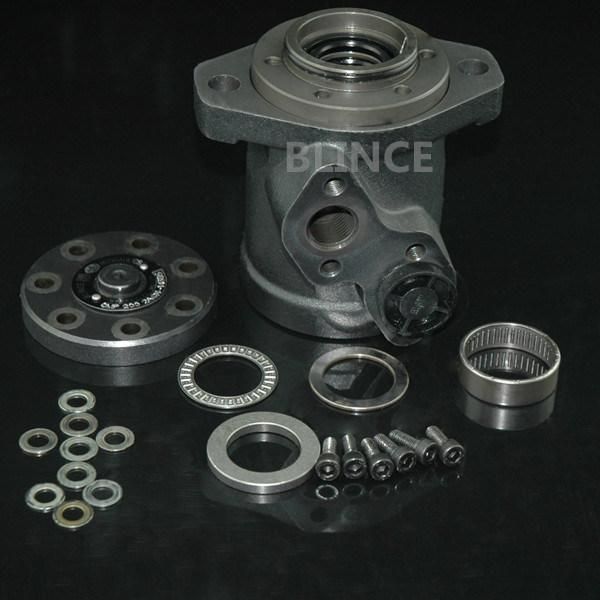

OMP motor exploded view:


Application areas:

Danfoss :OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV/ DH/ DS series hydraulic motor.

Eaton : J (129-) series, H(101-) series,S(103-) series,T(158-)series,2000(104-)
series,6000 series orbit motor

M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.

White : MP/RS/MR/RG/HB/CE/RE series hydraulic motor

Parkers : TE/ TG/ TF series hydraulic motor.

Sam Brevini : BGM/ BG/ BR/ HPR/ HT hydraulic motor

Bosch Recroth : MGX/ MGP, GXP/ MGR, GMR/ MGS, GMS / MGT,GMT/ MGV, GMV series hydraulic motor.




Warranty:
1. 1 year warranty after sale
2. During guarantee, items share free repairs or replacement.
3. Customer is responsible for the freight of come-and-back,and the customs tax.
4. To save the cost, please send the item back without packing.
5. Pls provide the defective appearance and related invoice number.
6. All emails will be answered within 1 working day.

WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
