• Model NO.：CGLT
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：50PCS,Day

Basic Info.

Model NO. CGLT Trademark Corediam Origin China HS Code 82023910 Production Capacity 50PCS/Day

Product Description

1. Introduction

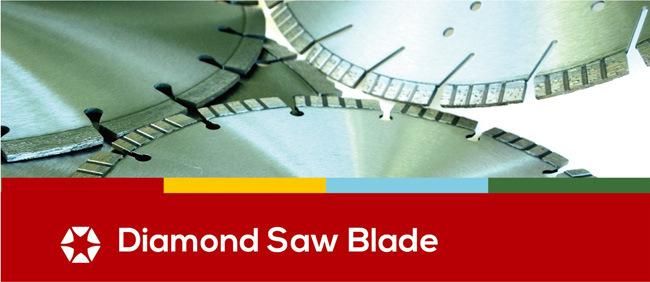

This type of blade is laser welded,  with turbo segments we can improve cooling of the blades and provide better removal of debris. The diameter is 300mm. Using specially designed water slots in the steel core, we can both improve the cooling and reduce the noise during cutting projects.  Concrete saw blade offer fast and smooth cutting performance due to the special design of slots and segments as well as long life. The circular saw blades are installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting.

2. Features
1). Laser welded technology, the segmented type with efficient cutting all range of materials.
2). Both Dry and Wet Use.
3). Maximizing the value with good performance.
4). Superior fast cutting
5). Long cutting life
6). Different grade to choose



3. Specification(The other size can be customed by your request.)


Item No.	Diameter	Segment Height	Segment Width	Arbor
CGLT10510	105mm	10mm	2.0mm	22.23mm
CGLT11510	115mm	10mm	2.0mm	22.23mm
CGLT12510	125mm	10mm	2.0mm	22.23mm
CGLT15010	150mm	10mm	2.0mm	22.23mm
CGLT18010	180mm	10mm	2.3mm	22.23mm
CGLT23010	230mm	10mm	2.5mm	22.23mm
CGLT30010	300mm	10mm	3.2mm	20/25.4mm
CGLT35010	350mm	10mm	3.2mm	25.4mm
CGLT40010	400mm	10mm	3.2mm	25.4mm

OEM service offered.

4. Delivery time
Our leading time will be about 2 week for batch order.

5. Laser Welded Diamond Saw Blade Manufacturing Technique
Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch

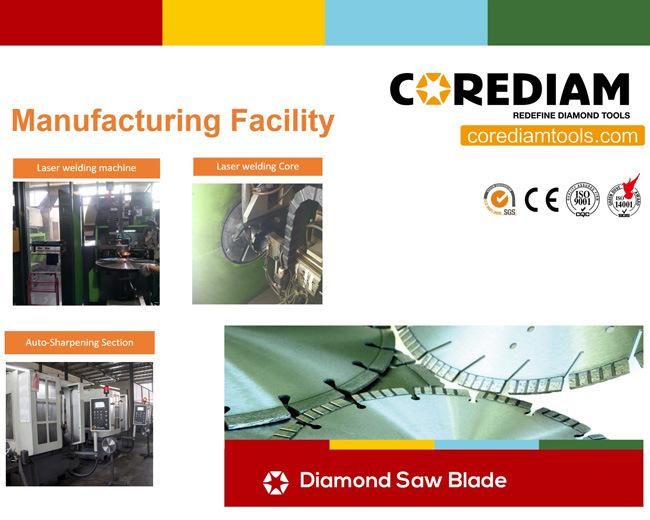

6. Manufacture facility.


7. Corediam quality control



8.Testing Process
