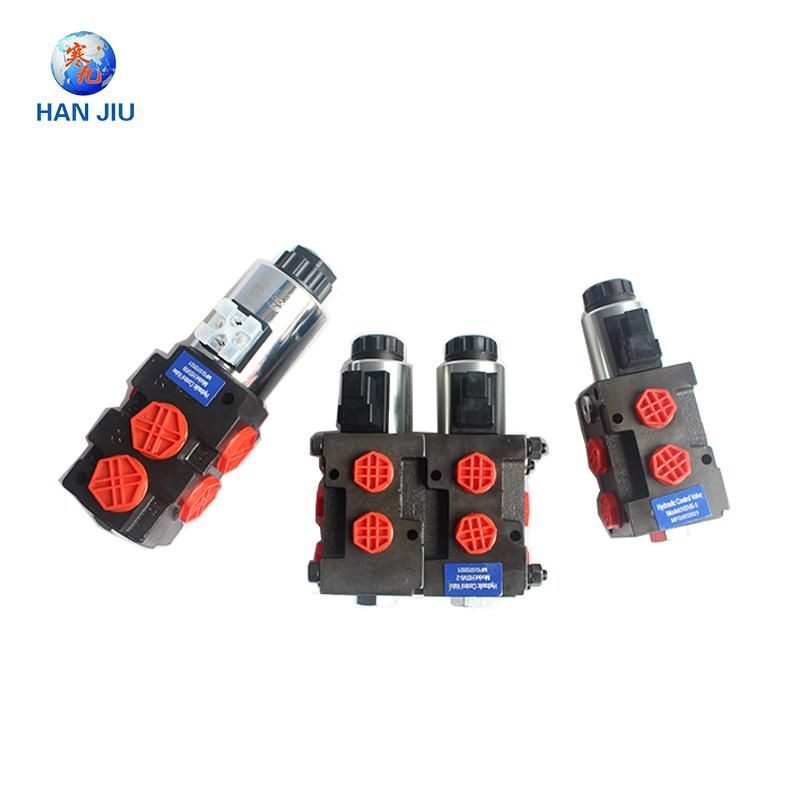

• Model NO.：hsv6
• Transport Package：Carton, Pallet
• Specification：5 KGS
• Trademark：HANJIU
• Origin：China
• HS Code：8481802990
• Production Capacity：10000 Pieces

parametervalueNumber of Work Sectionsfrom 1 to 3Max working pressure315 barOperating pressure210 barRated flow50 l / minWorking temperaturefrom -30 ° С to + 50 ° СFluid viscosityfrom 20 to 400 mm ² / sFluid temperaturefrom -20 ° С to + 70 ° СFiltrationGrade 9 NAS1638Supply Voltage / Power Consumption12VDC * / 36W and 24VDC * / 29WSwitching frequency ^max15,000 times per hourDuty cycleone hundred%



Ordering code

HSV6---X---X---X---X

   1      2      3    4     5



1.series code

2.Model type: A/B/C

3.Number of sections:1-3( Model A,B available for stack)

4.Ports size

CodePort Thread sizeP1



G1/2



P2



G3/8



P3



7/8-14UNF




5.Solenoid type



Model type

type A
