V-I180sv Refrigeration House Use Single Stage Vacuum Pump
Jiangsu Jindong HVAC Industrial Co., Ltd.- Certification：RoHS, CCC, CE, GS
- Handle Material：Stainless Steel
- Folded：Unfolded
- Brand：Value
- Quality Grade：Maintenance Level
- Standard：ANSI
Base Info
- Model NO.：V-i180SV
- Voltage：220V~,50Hz
- Flow Rate(M3/H)：14.4
- Partial Pressure：2PA
- Power：550W
- Dimension：395*145*318mm
- Weight：15.4kg
- Transport Package：Package of Blow Molding
- Specification：15.4kg
- Trademark：value
- Origin：China
- HS Code：8205100000
- Production Capacity：10000
Description
Basic Info.
Model NO. V-i180SV Voltage 220V~/50Hz Flow Rate(M3/H) 14.4 Partial Pressure 2PA Power 550W Dimension 395*145*318mm Weight 15.4kg Transport Package Package of Blow Molding Specification 15.4kg Trademark value Origin China HS Code 8205100000 Production Capacity 10000Product Description

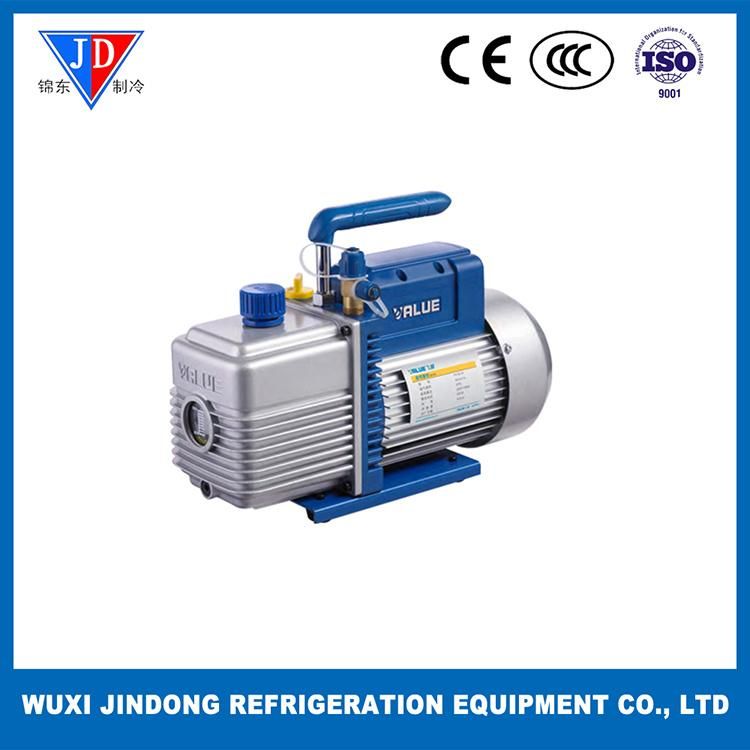

Model:Air conditioner vacuum pump V-i180SV
Characteristic:
| Model | V-i180SV |
| Rated voltage | 220V~/50Hz |
| Puming rate(m3/h) | 14.4 |
| Limit pressure(pa) | 2Pa |
| Motor power(W) | 550 |
| Oil quantity(ml) | 660 |
| Dimension | 395×145×318mm |
| Weight(Kg) | 15.4Kg |
| Inlet connection thread | 7/16"-20UNF |
(A)Two-stage/integral cylinder block structure,high oresicion and higher limit cavuum.
(B)Forced lubrication,higher relability.
(C)Large oil window,better visibility to prevent oil shortage.
(D)Solenoid valve: absolutely prevention of reflux.

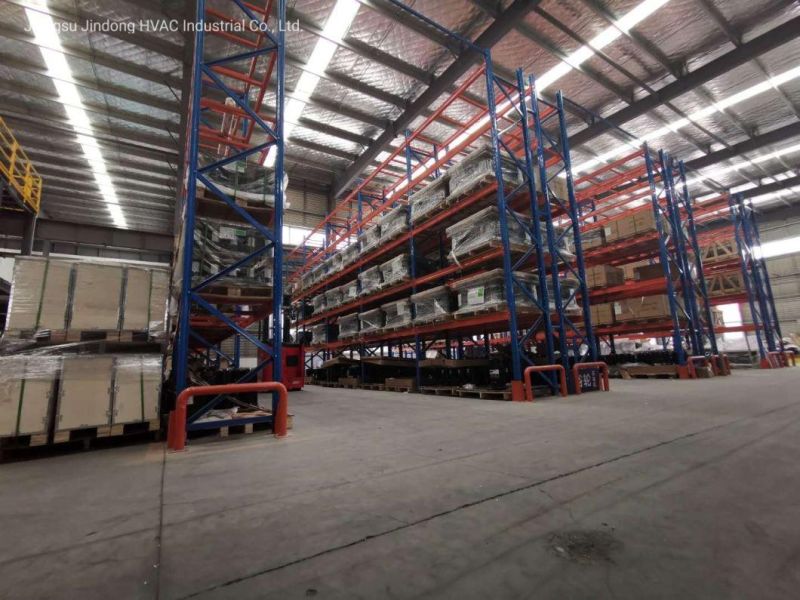

This is our warehouse:
As you can see, we have various types of refrigeration accessories,you can buy what you need together,and save a lot of time.We have more than 50 employees managing the warehouse.We will deliver the goods as soon as possible.
