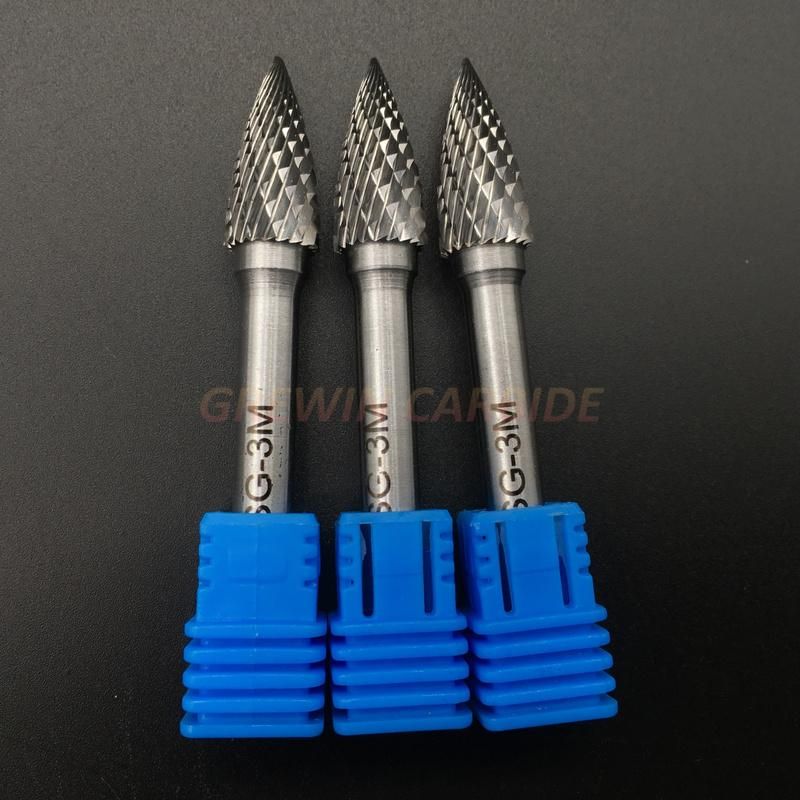

Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.
  • Type：Carbide Burrs
  • Material：Carbide
  • Usage：Metal Drilling
  • Shape：Round
  • Processing Methods：Milling File
  • Tooth Pattern：Bidentate Pattern

Base Info

  • Model NO.：Type A, C, D, E, F, G, H, J, K, L, M, N, S, T
  • Section Shape：Square
  • Color：Multicolor
  • Customized：Non-Customized
  • Condition：New
  • Work Piece：Steel, Aluminium, Light Alloy, Brass, Copper, Zinc
  • Model No：A0312, B0312, C0312, D0302, E0306, F0313, G0310
  • Cutting Type：Medium Cut, Fine Cut, Double Cut, Aluminum Cut
  • Type of Cutting：Medium Cut, Fine Cut, Double Cut, Aluminum Cut
  • Flute Type：Coarse, Fine, Double, Chip Breaker
  • Types：a, C, D, E, F, G, H, J, K, L, M, N, S, T
  • Quality：High Quality, Customized Available
  • Delivery Time：Keep Stock for Regular Types
  • Handle Material：Steel
  • Brand：Gw
  • Transport Package：Standard Box
  • Specification：33x29x19cm
  • Trademark：GW
  • Origin：Zhuzhou
  • HS Code：82090090
  • Production Capacity：500000PCS,Month

Description

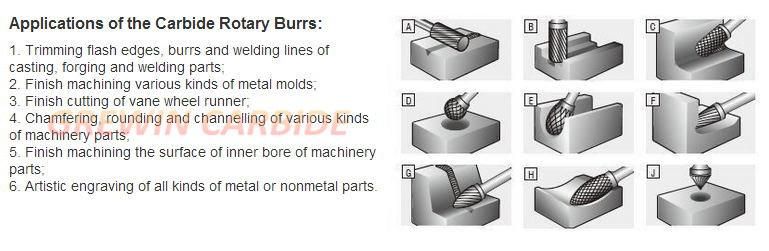

Product NameTungsten Carbide Rotary BurrsMaterialCarbideTooth TypesSingle Cut/Double CutSizesShank dia:3mm,4mm,6mm;blade dia/blade length/overall length: standard/as requestApplicationsUsing Carbide Rotary Burrs is a effective way to realize mechanization in hand works operations. In the industries of airplane, ship building automobile, machinery, chemistry etc. Carbide Rotary Burrs can be widely used in machining iron, steel casting, carbon steel, alloy steel, stainless steel, hardened steel, copper, Aluminium etc.Advantage high productivity, good processing quality, high finish, can be used to process a variety of high economic efficiency.

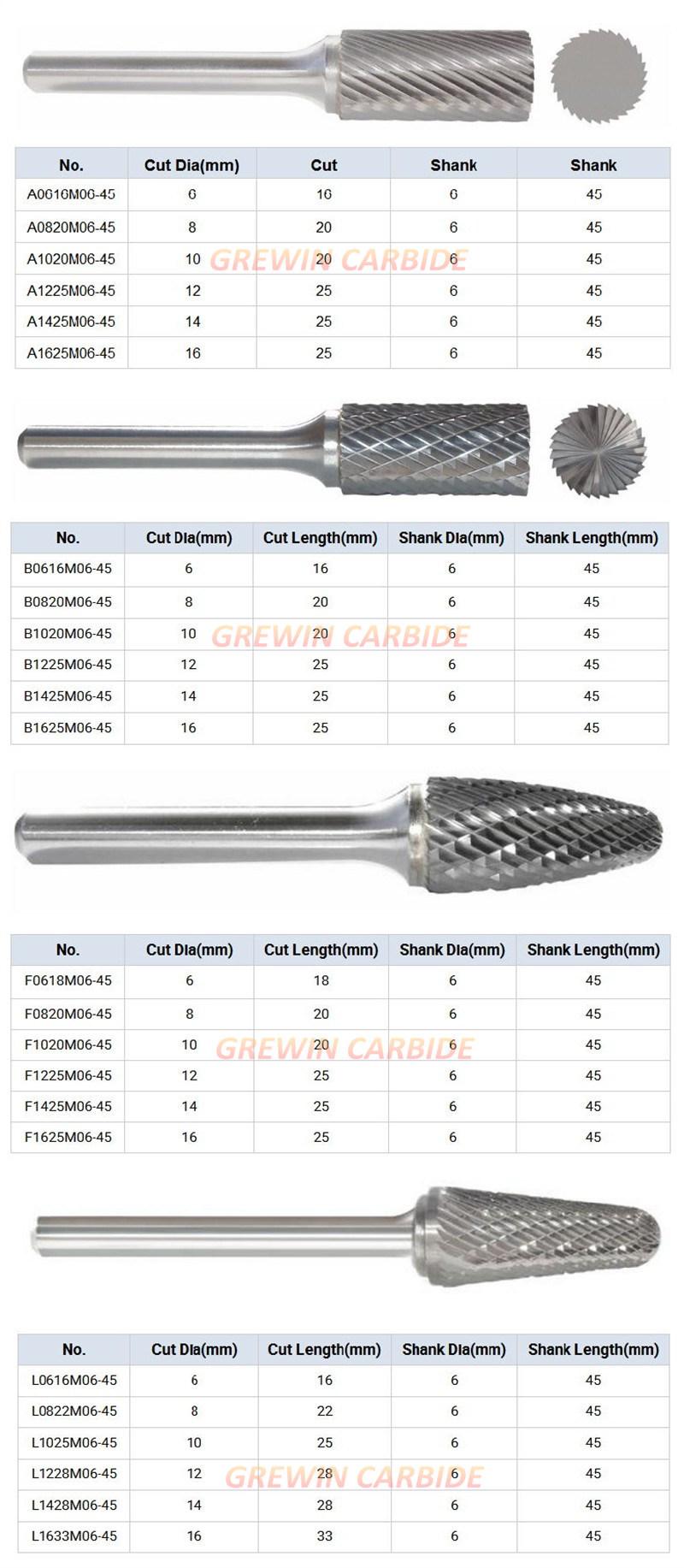

3. Shapes of for carbide burrsShapes of carbide burrs1.Cylindrical (Plain End)-Shape A;
2.Cylindrical (End Cut)_Shape B;
3.Cylindrical (Radius End)-Shape C;

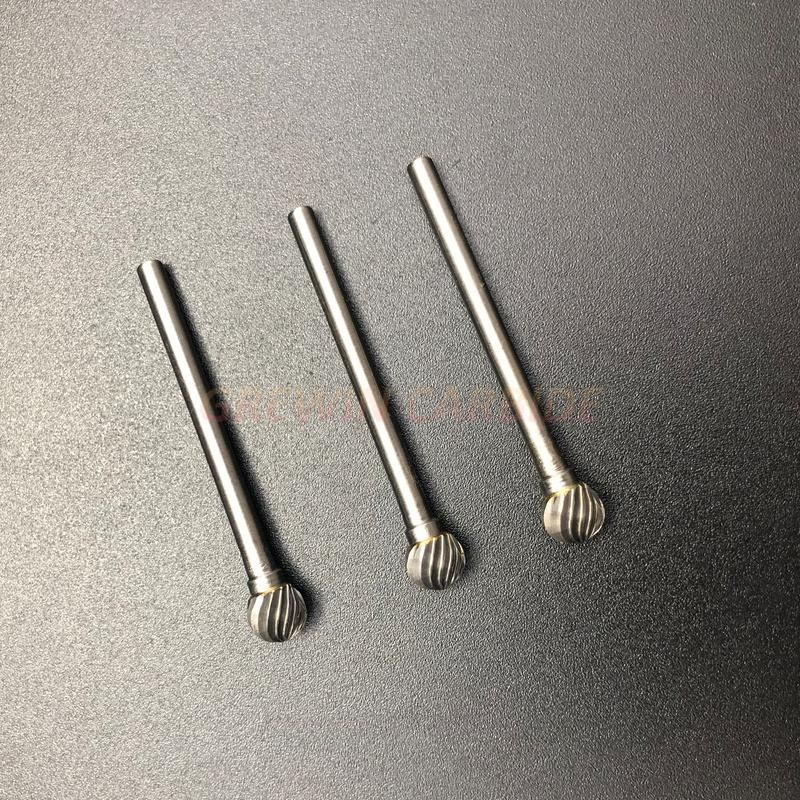

4.Ball-Shape D;
5.Oval-Shape E;
6.Tree (Radius End)-Shape F;

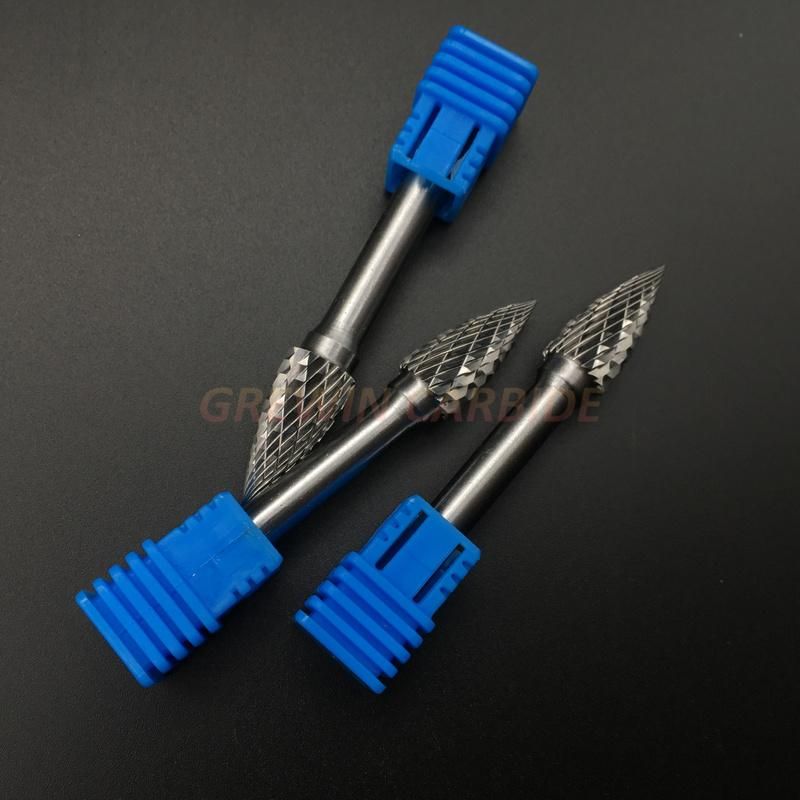

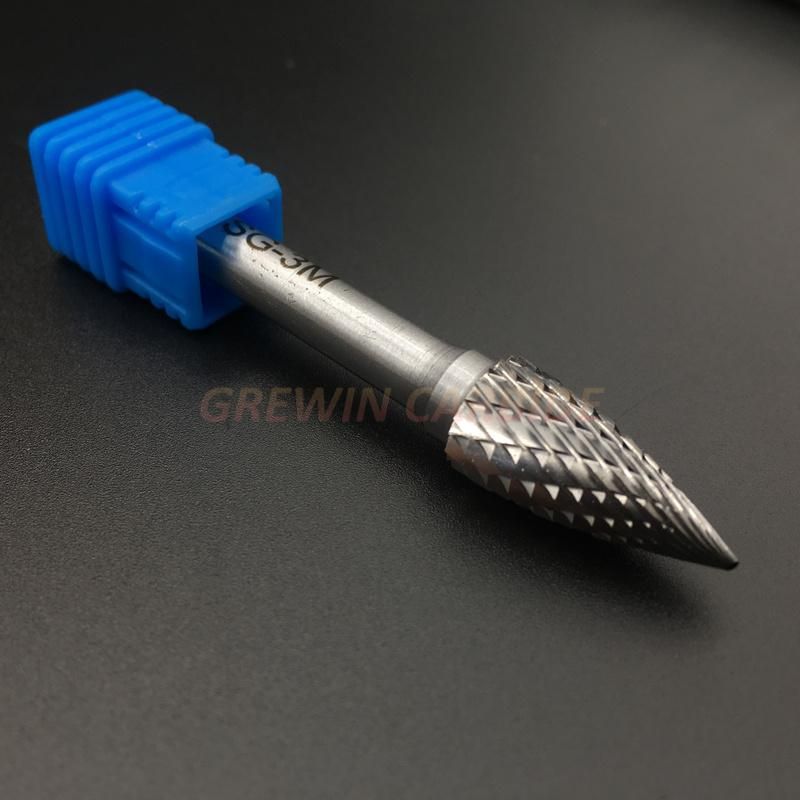

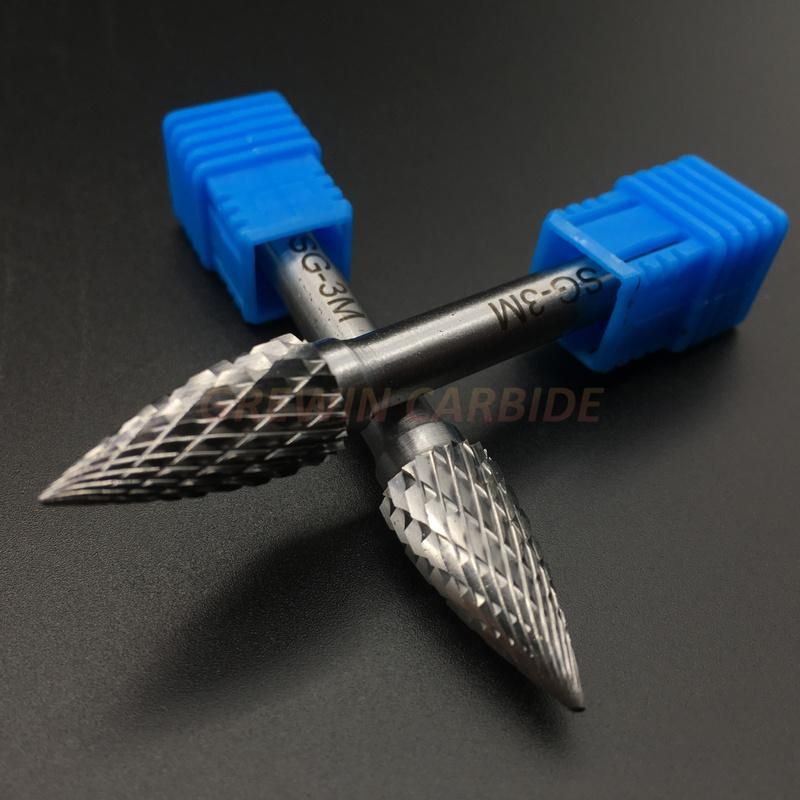

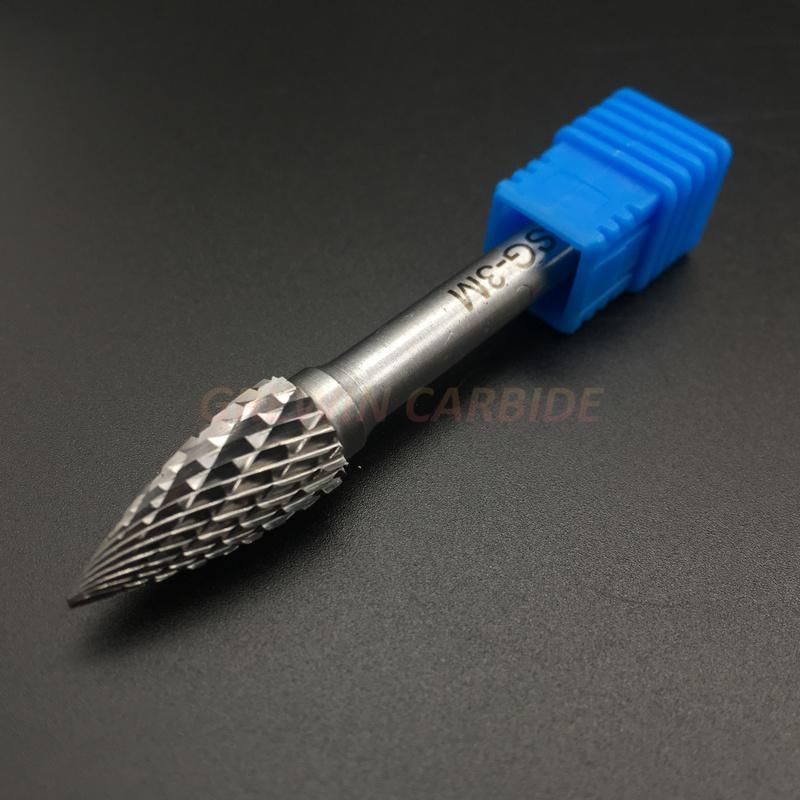

7.Tree (Pointed Ends)-Shape G;
8.Flame-Shape H;
9. 60°Cone-Shape J;
10.Taper (Radius End)-Shape L;Conical Round Nose-Shape L;
11. Cone -Shape M;
12. 90°Cone-Shape K;
13.Inverted Cone-Shape N;
14.Disc Type with arc edge_Shape W;
15.Disc Type-Shape X;
16.Dics type with 90°Angle-Shape Y
4. Package details
(1) One plastic pipe packs one piece, 10 pieces per group.
(2) Use air bubble paper to encase the plastic pipes.
(3) Put goods encased with air bubble paper into the carton box.
(4) Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group.

Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut

Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut
Gw Carbide - G1225m06 Tungsten Carbide Rotary Burr Single Cut




Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd  is located in hometown of Chinese carbide industry - Zhuzhou city.  The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.The company is dedicated to " WE GROW, WE WIN".  Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.


Please contact me.
