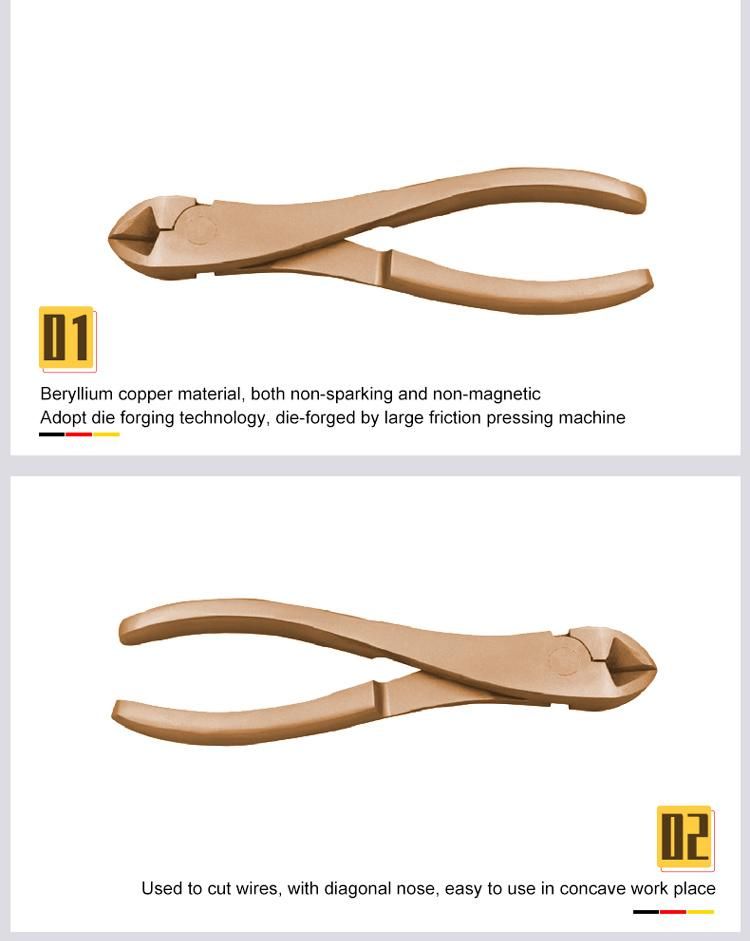

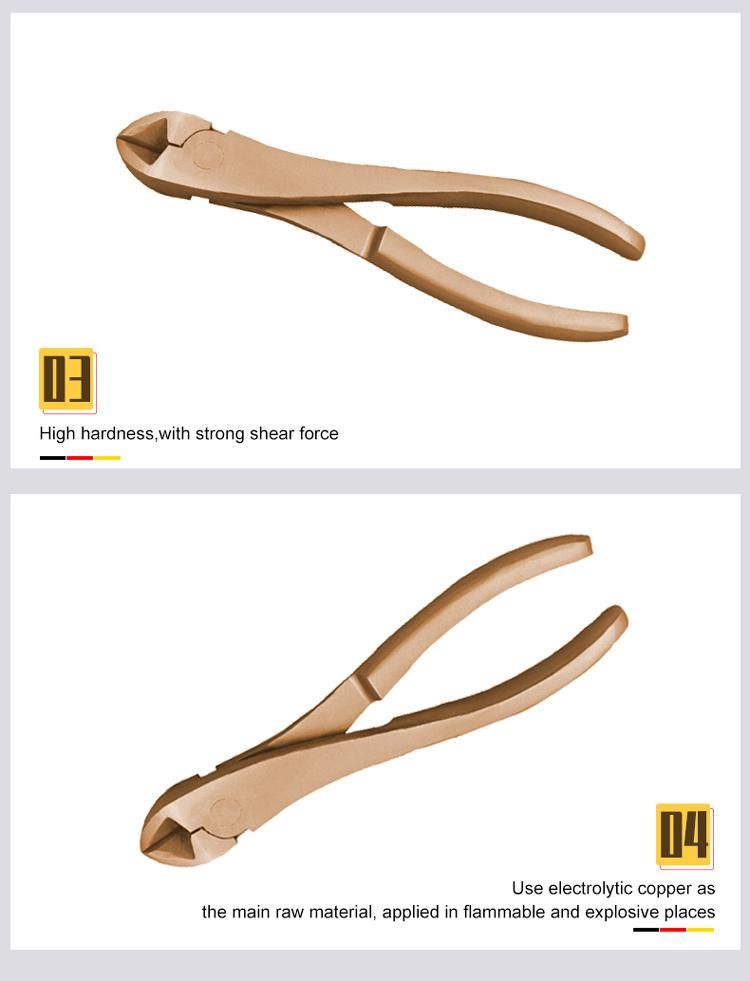

WEDO 6" 8"Non-Sparking Diagonal Cutting Pliers (American Type) Side Wire Cutters Pliers Beryllium Copper
WEDO TOOLS CO.,LTD- Types：Diagonal Cutting Plier
- Material：Beryllium Copper
- Function：Cutting
- Brand：WEDO
- Performance：Cutting
- Shaft Style：Arched
Base Info
- Model NO.：BE248C
- Handle Color：Golden Yellow
- Application Age：Adult
- Use Place：Inflammable and Explosive
- Size：Common
- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
- Origin：China
- HS Code：8203200000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper L(inch) L(mm) N.W. (g) BE248C-1002 6 150 215 BE248C-1004 8 190 385
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
