• Model NO.：CGLB
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：50PCS,Day

Basic Info.

Model NO. CGLB Trademark Corediam Origin China HS Code 82023910 Production Capacity 50PCS/Day

Product Description

1. Product Introduction

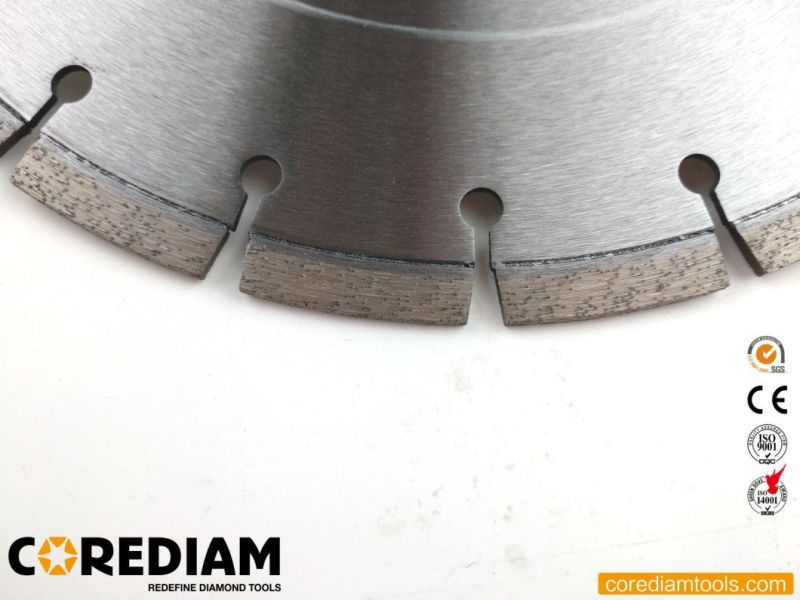

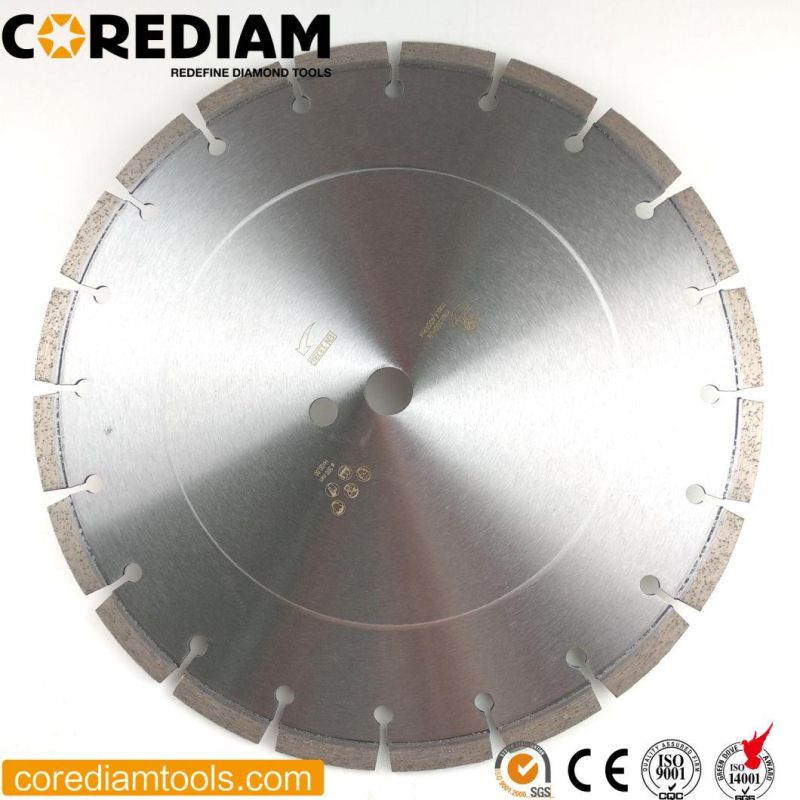

400mm Laser Welded General Purpose Diamond Blade is laser welding by the full-automatic laser welding production line. Segments height of diamond saw blade is 7mm. It has wide application, which you can install on the handheld saw, floor saw, walk-behind saw. Segment blade is used for cutting concrete, cutting bricks, block, slate, concrete, masonry, and other construction materials. The maximum diameter of general-purpose blade is 400mm, and other specifications are based on your request. We can also supply other types of construction tools.



 Features of 400mm Laser Welded Segment Saw Blade for General Purpose
1). Laser welded technology, the segmented type with efficient cutting all range of materials.
2). Both Dry and Wet Use.
3). Maximizing the value with good performance.
4). Easy and smooth cutting
5). Long cutting life
6). Different grade to choose



2. Application

These blades are used for cutting brick, block, slate, masonry, concrete with good efficiency.

3. Specification


Item No.	Diameter	Segment Height	Segment Width	Arbor
CGLB10510	105mm	10mm	2.0mm	22.23mm
CGLB11510	115mm	10mm	2.0mm	22.23mm
CGLB12510	125mm	10mm	2.0mm	22.23mm
CGLB15010	150mm	10mm	2.0mm	22.23mm
CGLB18010	180mm	10mm	2.3mm	22.23mm
CGLB23010	230mm	10mm	2.5mm	22.23mm
CGLB30010	300mm	10mm	3.2mm	20/25.4mm
CGLB35010	350mm	10mm	3.2mm	25.4mm
CGLB40010	400mm	10mm	3.2mm	25.4mm

OEM service offered.

4. Delivery time

Our leading time will be about 2 week for batch order.

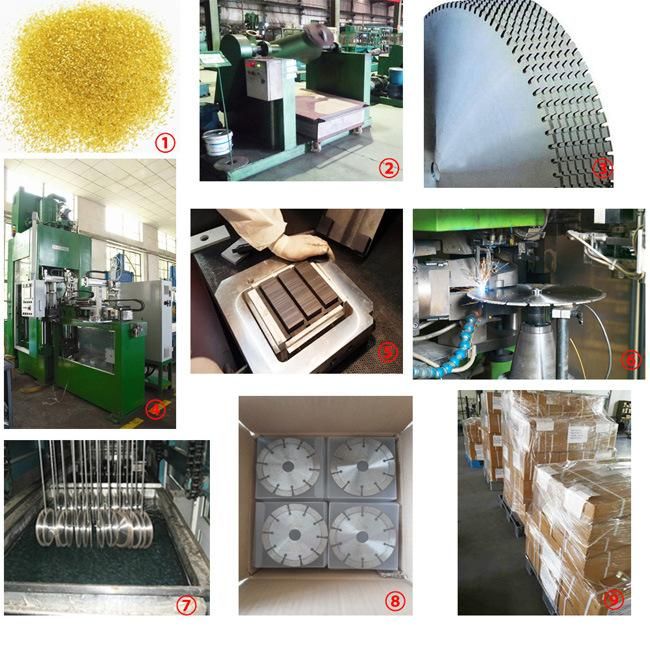

5. Laser Welded Diamond Saw Blade Manufacturing Technique





6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
