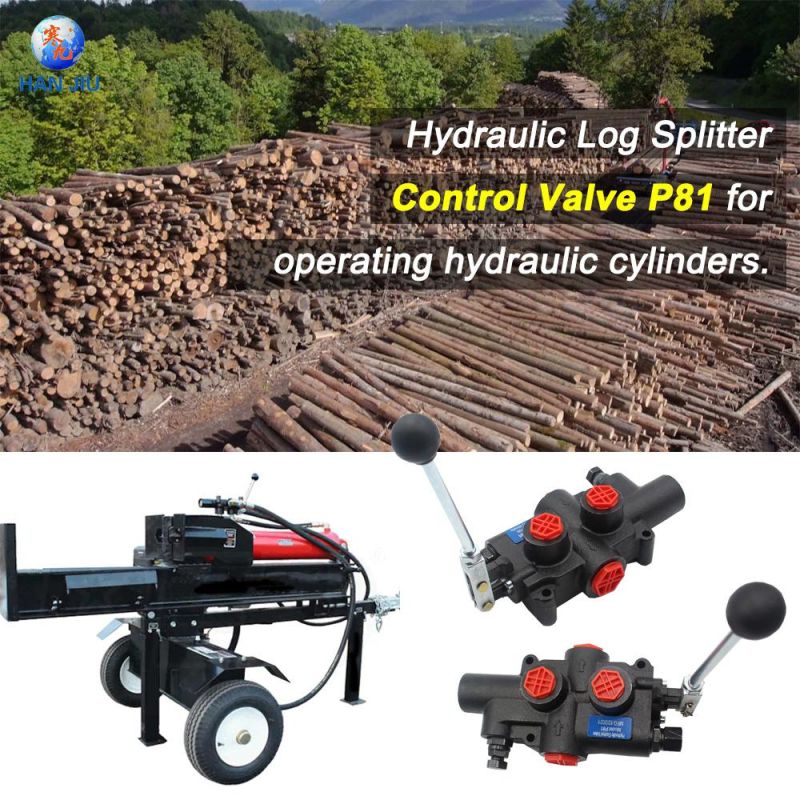

Log Splitter Valve, P81, G 1/2", 80 L/Min

Shijiazhuang Hanjiu Technology Co., Ltd.

Function：Flow Control
Installation：Threaded Cartridge
Drive：Hydraulic
Type：Directly Operated Type
Spool：1, 2, 3, 4, 5, 6, ...
Flow：40lt, 50lt, 60lt, 90lt, 100lt, 120lt, 140lt, ...

Base Info

Model NO.：p81
Transport Package：Carton, Pallet
Specification：5 KGS
Trademark：HANJIU
Origin：China
HS Code：8481802990
Production Capacity：10000 Pieces

Description

Ambient temperature: -40 ...+60 °C

Viscosity: 12 ... 800 mm2/s

Fluid temperature: -15 ... +80 °C

Filtration: 10 to NAS 1638

Max. operating pressure: P: 250 bar, T: 50 bar, A-B: 300 bar

Back pressure: 10 bar

Nominal flow: 80 L/min

Leakage: 20 cm3/min at 120 bar (A,B - T)

Spool stroke: 7.9 mm

Actuating force: < 220 N

Port threads: A-B: G 1/2, P-T: G 3/4
