Relief Hydraulic Valve Dbetr Pressure Adjusting with External Amplifier Rekith
JIANGSU JIAYITE HYDRAULIC COMPONENT CO., LTD.- Function:Pressure Regulating
- Installation:Plate
- Drive:Electric
- Type:Directly Operated Type
- Max Working Pressure:350bar
- Max Flowing:3L,Min
Base Info
- Model NO.:DBETR
- Transport Package:Standard Carton or Plywood Package
- Trademark:Rekith
- Origin:China
- HS Code:8481201090
- Production Capacity:50 Pieces,Month
Description
Overview
Weight KG 4.0 Fixing position preferable horizontal Storage temperature range ºC -20 to +80 Environment temperature range ºC -20 to +50 Max.operating pressure bar to 350 Max.setting pressure bar 30,80,180,230,315,350 Min.setting pressure bar see characteristic curves Max.flow-rate pressure stage 30 L/min 3 pressure stage 80 3 pressure stage 180 3 pressure stage 230 3 pressure stage 315 2 pressure stage 350 2 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -20 to 80 Viscosity range mm²/s 15 to 380 Degree of contamination Maximum permissible degree of fluid contamination: Class20/18/15, ISO4406 Hysteresis % <1 of max.settable pressure Repeatability % <0.5 of max.settable pressure Linearity % <1.5 of max.settable pressure Supply voltage V 24 DC Max.connection power VA 50 Solenoid coil resistance Cold value at 20ºC Ω 10 Max.hot value Ω 13.9 Duty cycle % 100 Electrical connection With component plug to DIN EN 175301-803 Cable socket to DIN EN 175301-803 Type of protection of the valve to EN 60529 IP65 with cable socket mounted and locked
FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data

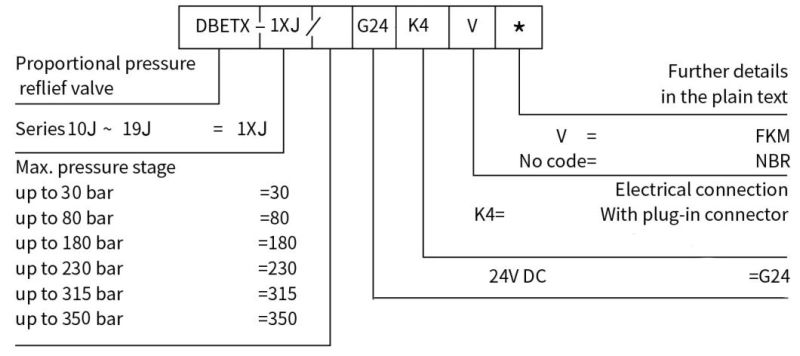

Ordering code
