Omh Bmh Series Hydraulic Motor Boat Engine Outboard Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Speed：High Speed
- Type：Hydraulic Motor
- Code：Omh,Bmh Series Hydraulic Motor
- Displacement：Omh200,250,315,400,500cc
- Max. Speed(Cont.)：155-366rpm
Base Info
- Model NO.：OMH series hydeaulic motor
- Max.Torque(Cont.)：510-830n.M
- Max.Pressure(Cont.)：12.5-17.5MPa
- Weight：10.5-13kg
- Advantages：High Pressure, Low Noise, Small Volume
- Rotation：Standard,Opposite
- Color：No Paint, Black, Iron Ash,Blue
- OEM：Accept
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：high quality hydraulic motor
- Trademark：Blince Hydraulic
- Origin：China(Mainland) Dongguan
- HS Code：8412291000
- Production Capacity：100000 PCS,Year
Description
OMH Series Orbital Hydraulic Motor
Displacement: 200,250,315,400,500
Mounting Flange: 1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6 Output Shaft: 1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45
3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6B Port and drain port: 1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4 Rotary direction Standard
Reverse
OtherSpecial function
Application areas:
Sweeper, Hydraulic Winch,Conveyor,Crane,Aerial lift,Combine Harvester,Seeder,Spreader, Auger,etc.

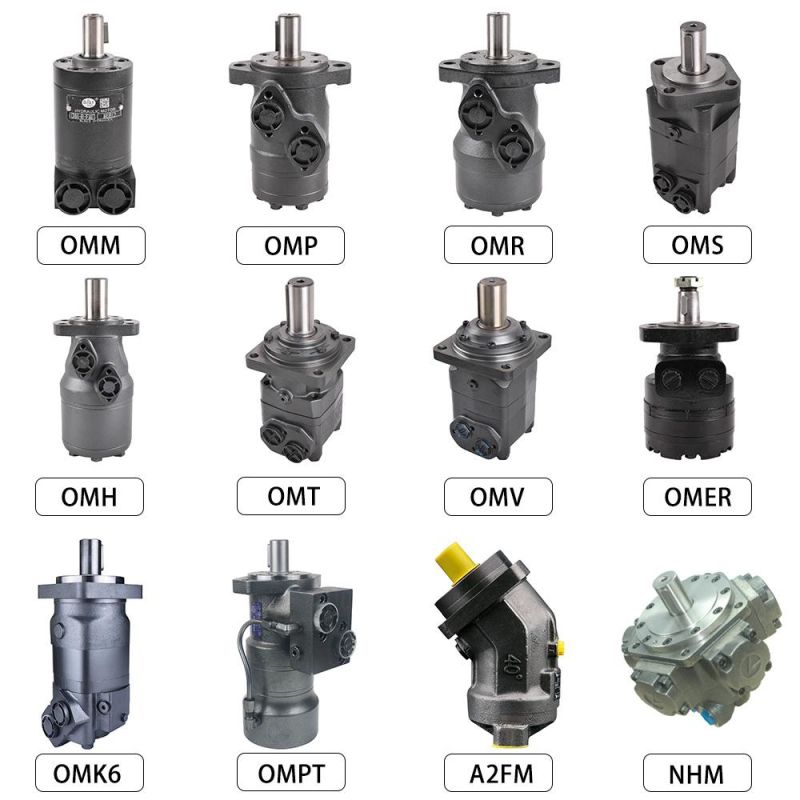

Related Products:
BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV
White orbit motor WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series
Parker orbit motor OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT
Eaton Char Lynn orbit motor J/JH/JS/2K/6K/J6K/10K
M+S orbit motor MLHM/MP/MR/MH/MS/MT/MV
SAM orbit motor BG/BR/BS/AR/HR/HT
Brevini orbit Motor BG Series
Japen OPN ORB-GS Series
