• Model NO.：omp hydraulic motor
• Auxiliary Components：Seal
• Pressure Control Valve：Pressure Relay
• Hydraulic Power Units：Vane Pump
• Hydraulic Motor：Hydraulic Motors Omp
• Hydraulic Actuator：Hydraulic Motor
• OEM：Accept
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：100000 PCS,Year

                      typeOMP
OMPH
36OMP
OMPH
50OMP
OMPH
80OMP
OMPH
100OMP
OMPH
125OMP
OMPH
160OMP
OMPH
200OMP
OMPH
250OMP
OMPH
315OMP
OMPH
400OMP
OMPH
500Geometric displacement3651.777.796.2120.2157.2194.5240.3314.5389.5486.5Max.speed.(rpm)con.15001150770615490383310250192155120 int.16501450960770615475385310240190150Max.torque(N.mcont.55100146182236302360380375360385 int.76128186227290370440460555525560Max.output(KW)cont.8.010.010.011.010.010.010.08.57.06.05.0 int11.512.012.013.012.012.012.010.58.57.06.0Max.pressure
Drop(Mpa)cont.12.514141414141411976 int16.517.517.517.517.517.517.5141410.59Max.flow(L/min)cont.5560606060606060606060 int.6075757575757575757575Weight(kg)5.65.65.75.96.06.26.46.76.97.48
Flange:
1)Flange2: 2-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
2)Flange4: 4-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
3)FlangeH4: 4-3/8-16 Square-flange, pilot Ø 44.4× 2.8
4)FlangeH5: 4-M10 Square-flange, pilot Ø 44.4× 2.8

Shaft:
1)ShaftA: Shaft Ø 25, parallel key 8X7X32
2)ShaftC: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
3)ShaftE: Shaft Ø 25.4, splined tooth SEA 6B
4)ShaftR: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
5)ShaftB: Shaft Ø 32, parallel key 10X8X45
6)ShaftF: Shaft Ø 31.75, splined tooth 14-DP12/24
7)ShaftFD: Long shaft Ø 31.75, splined tooth14-DP12/24
8)ShaftG: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
9)ShaftT: Cone shaft Ø 28.56, parallel key B5X5X14
10)ShaftT3: Cone shaft Ø 31.75, parallel key 7.96X7.96X25.4

Drain port:
1)D: G1/2 Manifold Mount 4× M8, G1/4
2)M: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
3)S: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
4)P: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
5)R: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4

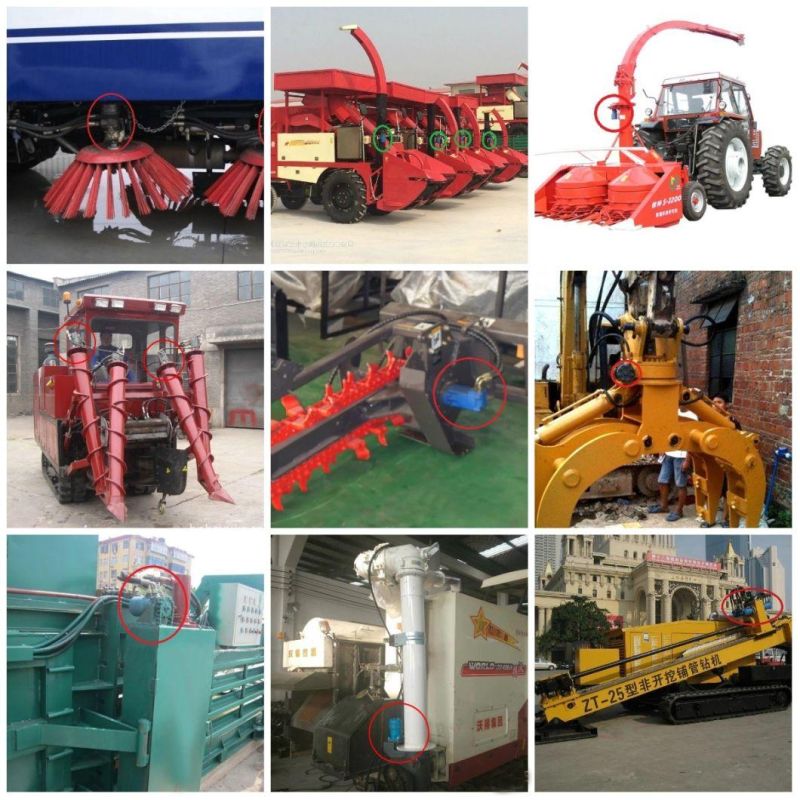

Application: Any need for high torque, low speed applications. For example:
- Sprinkler
- Mini excvavtor
- Driven scraper conveyor
- Screw
- Baler
- hydraulic Winch
- Fishing boat
-Municipal machinery, agriculture, forestry and construction equipment etc...

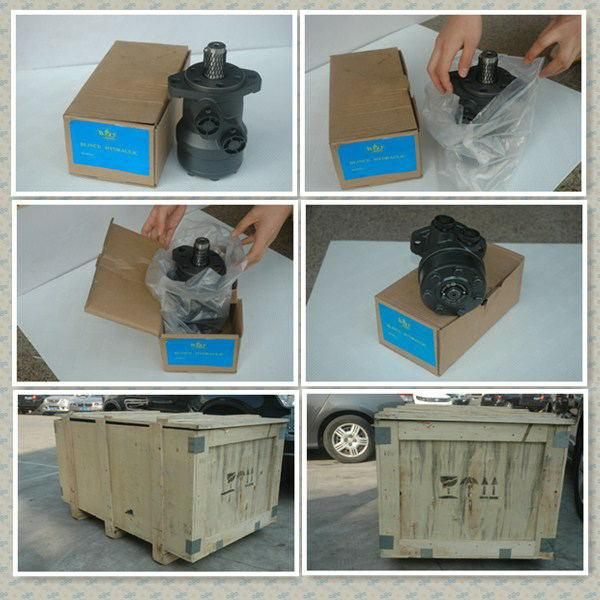

Packing details:
1, sale packing contians carton or wood case
2, interior packing is high quality film
3, as your requests



Payment mode:
1, Small amount accept Paypal
2, Western Union
3, Large orders We usually accept T/T(with 30% deposit, the balance before shipment)

My friends, if you are interested in our hydraulic motor OMP/BMP. Pls send me enquiry!
We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.


All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact winnie.
