Hydraulic Radial Piston Motor Displacement From 600-1000ml/Rev
Wuxi Hyphen Technology Co., Ltd.- Certification：ISO9001
- Speed：Low Speed
- Type：Plunger Type
- Shaft：Spline ,Straight
- Pressure：25MPa
- Transport Package：in Carton or Plywoodcase
Base Info
- Model NO.：HWM1000
- Trademark：Hyphen
- Origin：Jiangsu, China
- HS Code：8412291000
- Production Capacity：20000PCS,Year
Description
Basic Info.
Model NO. HWM1000 Trademark Hyphen Origin Jiangsu, China HS Code 8412291000 Production Capacity 20000PCS/YearProduct Description

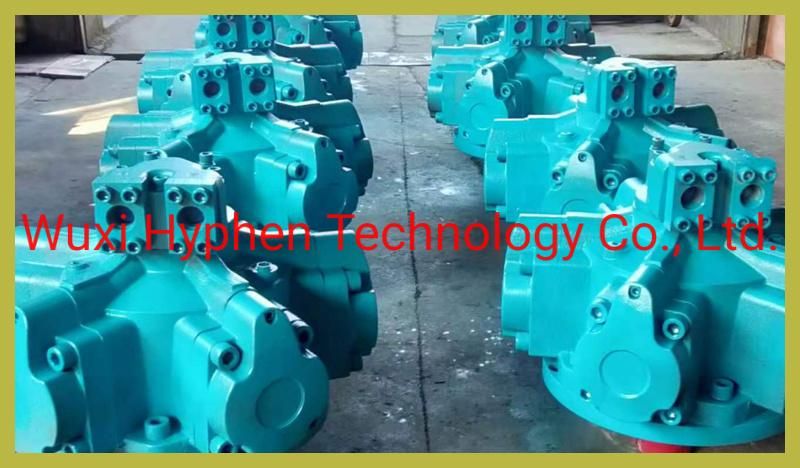

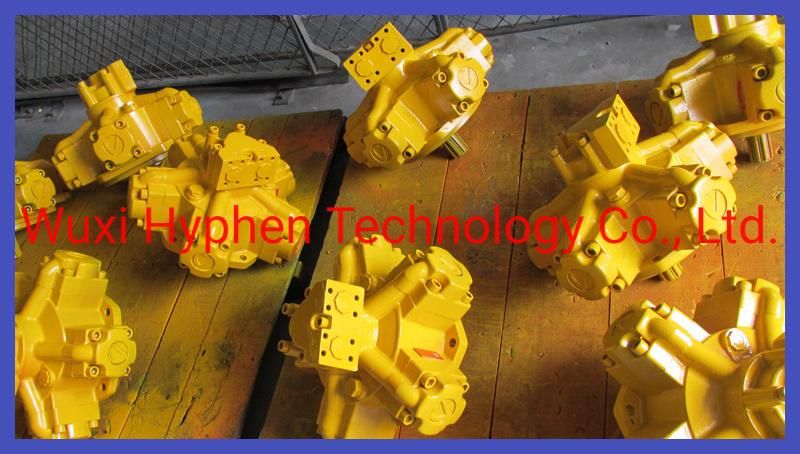

Radial Piston Hydraulic Motor is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied inpetroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastics injection molding machinery,
hydraulic winch, all kinds of rotational and the track and wheel travel machinery etc. For example: Crawler tractor, caterpillar excavator etc.
| Technical Parameters | 16-1400 | 16-1600 | 16-1800 | 16-2000 | 16-2400 | 16-3000 |
| Theoretical Displacement(ml/r) | 1413 | 1648 | 1815 | 2035 | 2267 | 3041 |
| Rated pressure(MPa) | 20 | 20 | 18 | 16 | 16 | 16 |
| Max Pressure(MPa) | 30 | 30 | 28 | 25 | 20 | 20 |
| Rated Torque(N.M) | 4500 | 5248 | 5184 | 5168 | 5763 | 7326 |
| Unit Theoretical Torque(N.m/MPa) | 225 | 262 | 288 | 323 | 360 | 483 |
| Max Power(Kw) | 95 | 95 | 95 | 95 | 95 | 95 |
| Max Rotation Speed(r/min) | 300 | 250 | 220 | 200 | 160 | 120 |
| Weight(kg) | 170 | 170 | 170 | 170 | 170 | 170 |
