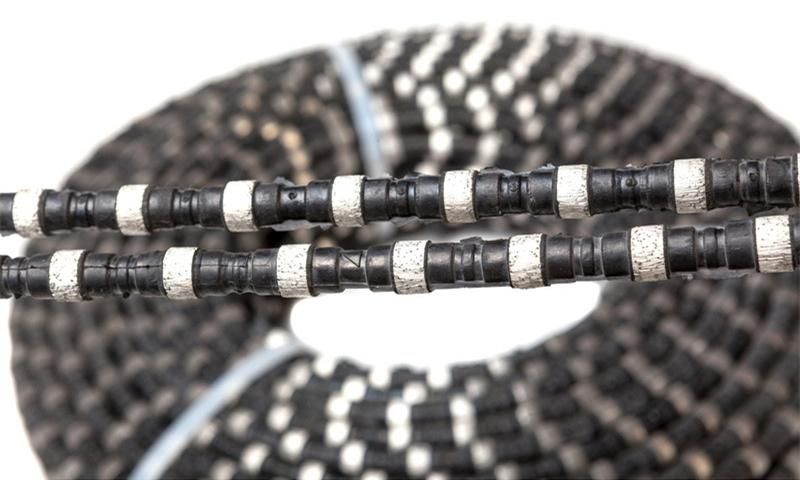

Lq Series Granite Marble Stone Cutting Wire
Quanzhou Keen Diamond Tool Co., Ltd.- Application：Stone Quarryig
- Item：Stone Cutting Wire
- Diameter：11.5mm
- Coating：Black Rubber
- Beads/M：40 PCS
- Making Method：Sintered
Base Info
- Model NO.：GDW-KT110-P
- Use：Wet Cutting
- Quality：Premium
- Lenth：50m,Roll
- Certification：SGS
- Kind：Stone Sawing Machine
- Usage：Stone Cutting
- Saw Blade External Diameter：7.2mm to 11.5mm
- Transport Package：Waterproof Plastic & Carton
- Specification：SGS
- Trademark：KEEN TOOL
- Origin：Quanzhou Fujian
- HS Code：82029910
- Production Capacity：10000m,Month
Description
Φ9.0*6.0MDW-
KT90-P Plastic 33 Soft 1.5-3.0 45-55 Medium 1.0-2.0 Hard 0.8-1.0 Φ8.5*6.0 MDW-
KT85-P Plastic 33 Soft 1.5-3.0 40-50 Medium 1.0-2.0 Hard 0.8-1.0 Specification of Beads(mm) Model Coating Beads No.
(Pcs/Meter) Hardness of Marble Cutting speed
(M2 /Hour) Cutting life
( M2/Meter) Φ11.0mm

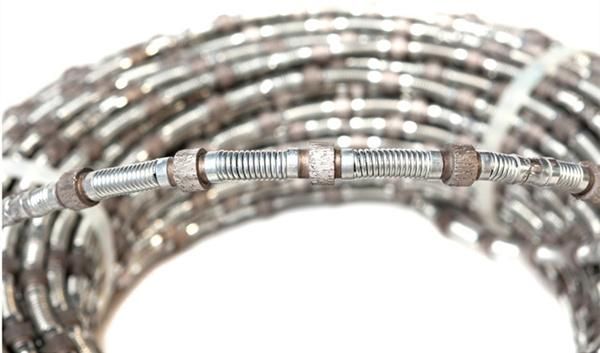

Φ10.5mm MDW-KT-QS Spring 26 SOFT 16-25 55-75 MEDIUM 12-16 45-65 HARD 7-10 30-45 Φ11.0mm
Φ10.5mm MDW-KT-QR Rubber 37 SOFT 12-20 55-75 MEDIUM 8-14 45-65 HARD 5-8 30-45 Specification of beads (mm) Model Coating Beads No.
(Pcs/M) Hardness of Granite Cutting speed
(M 2 /H) Cutting life
(M 2 /M) Φ11.0mm
Φ10.5mm GDW-
KT110/105-P Plastic 37 Soft 2-4 15-20 Medium 1.8-2.5 12-18 Hard 0.8-1.5 8-13 Φ9.0mm
Φ8.5mm GDW-
KT90/85-P Plastic 37 Soft 2-4 14-19 Medium 1.8-2.5 11-17 Hard 0.8-1.5 7-12 Φ7.2mm GDW-KT-72-P Plastic 37 Soft 2-4 12-16 Medium 1.8-2.5 10-15 Hard 0.8-1.5 6-11 Specification of beads(mm) Model Coating Beads No.
(Pcs/M) Hardness of Granite Cutting speed
( Sqm/Hr ) Cutting life
(Sqm/Mtr ) Φ11.5mm
Φ11.0mm GDW-KT-Q Rubber 40 Soft 8-12 28-40 Medium 6-8 18-25 Hard 3-5 8-15
1. Other specifications are available as per customers' requirement.
2. Different bond of wire beads specially for different kinds of material are available.
3. The performance of wire depends much on real cutting operation, power and tension system of wire saws, chemical composition of material and dimension of cutting bench etc.
Packaging & Shipping

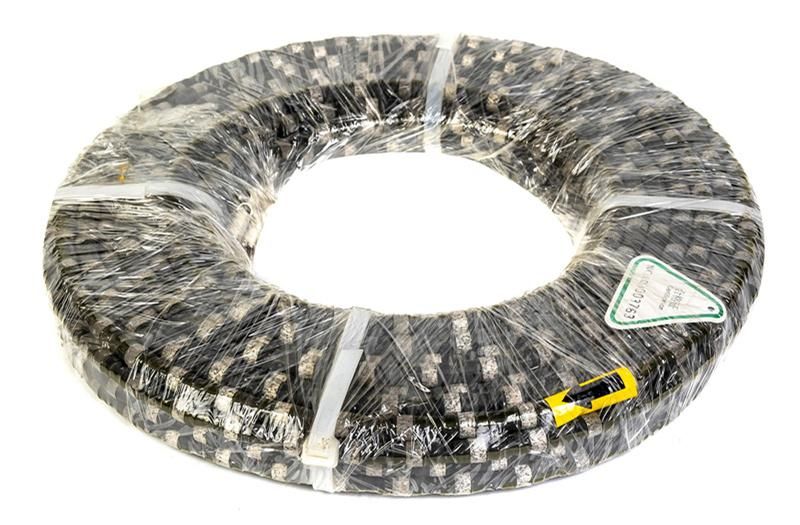

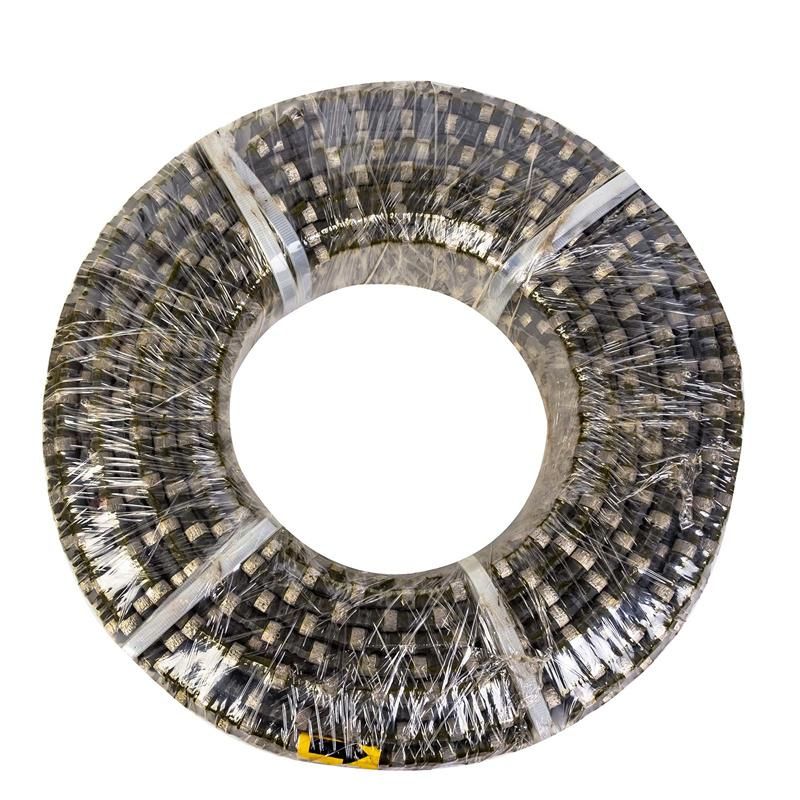

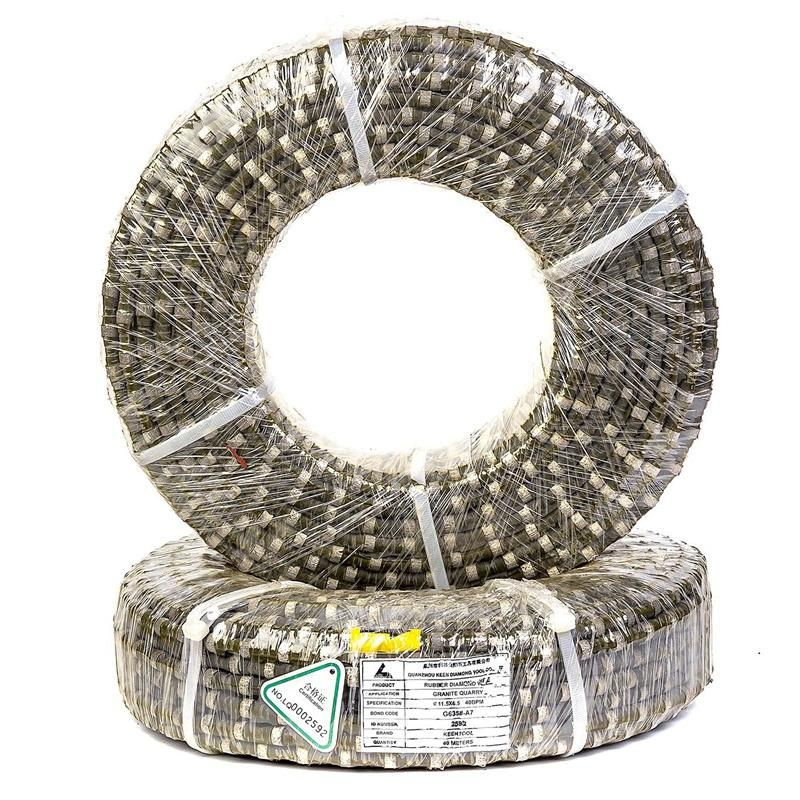

Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW: 9-31KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
If you are interested and would like to know more about us, welcome to visit us at http://keentool.en.made-in-china.com
ALWAYS AT YOUR SERVICE--KEENTOOL
