• Model NO.：LINSING
• Types：K Type, V Type , Step Type, Rectangular Type etc
• Material：Diamond Powder, Metal Powder
• Advantage：Long Lifespan
• Technology：Cold Press Hot Sintering
• Transport Package：as Per Every Client Requirements
• Specification：Size: 24*10*10mm
• Trademark：LINXING Diamond Tools
• Origin：Shangrao Province, China
• HS Code：3602009090
• Production Capacity：100, 000 PCS,Day

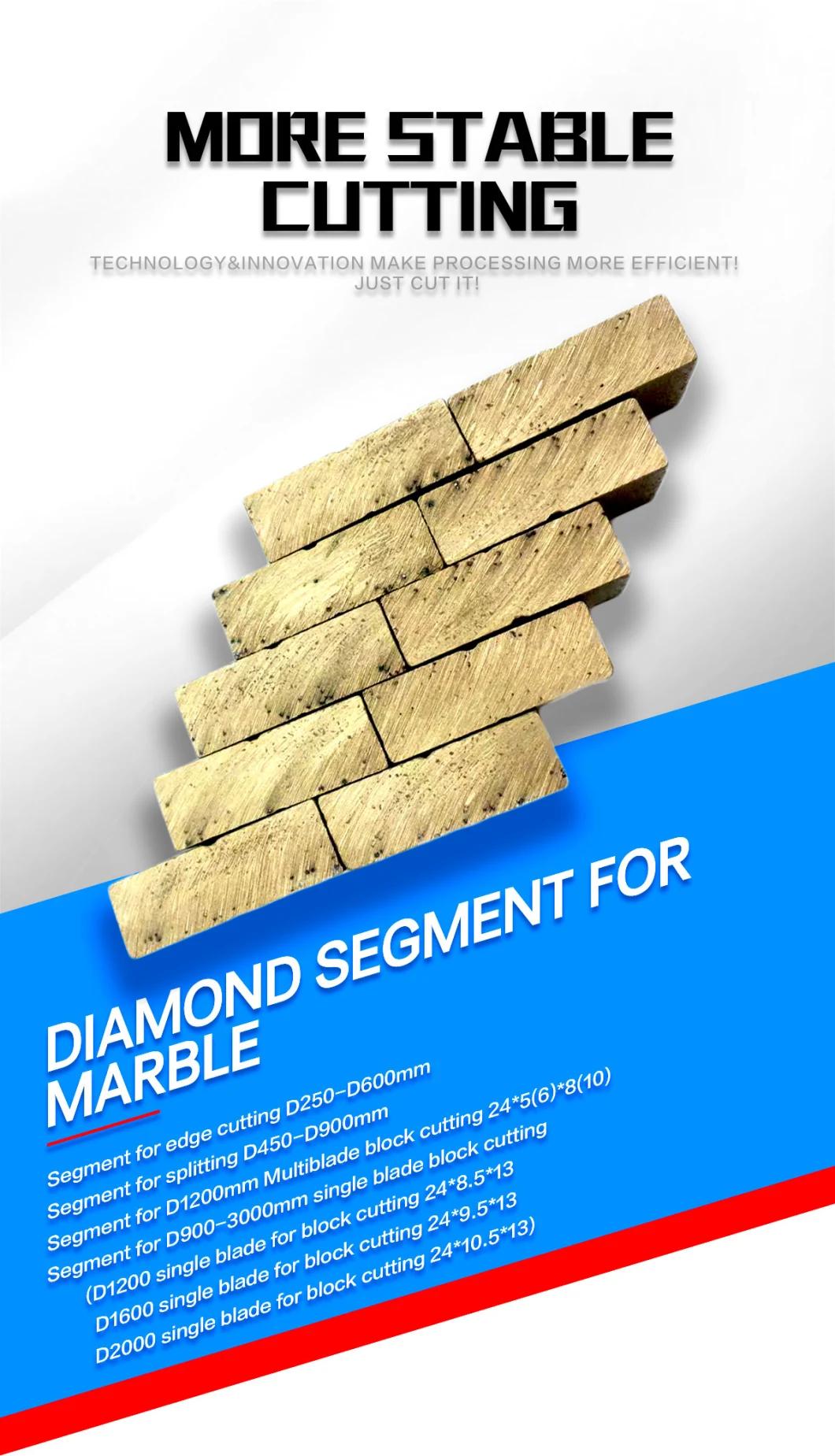

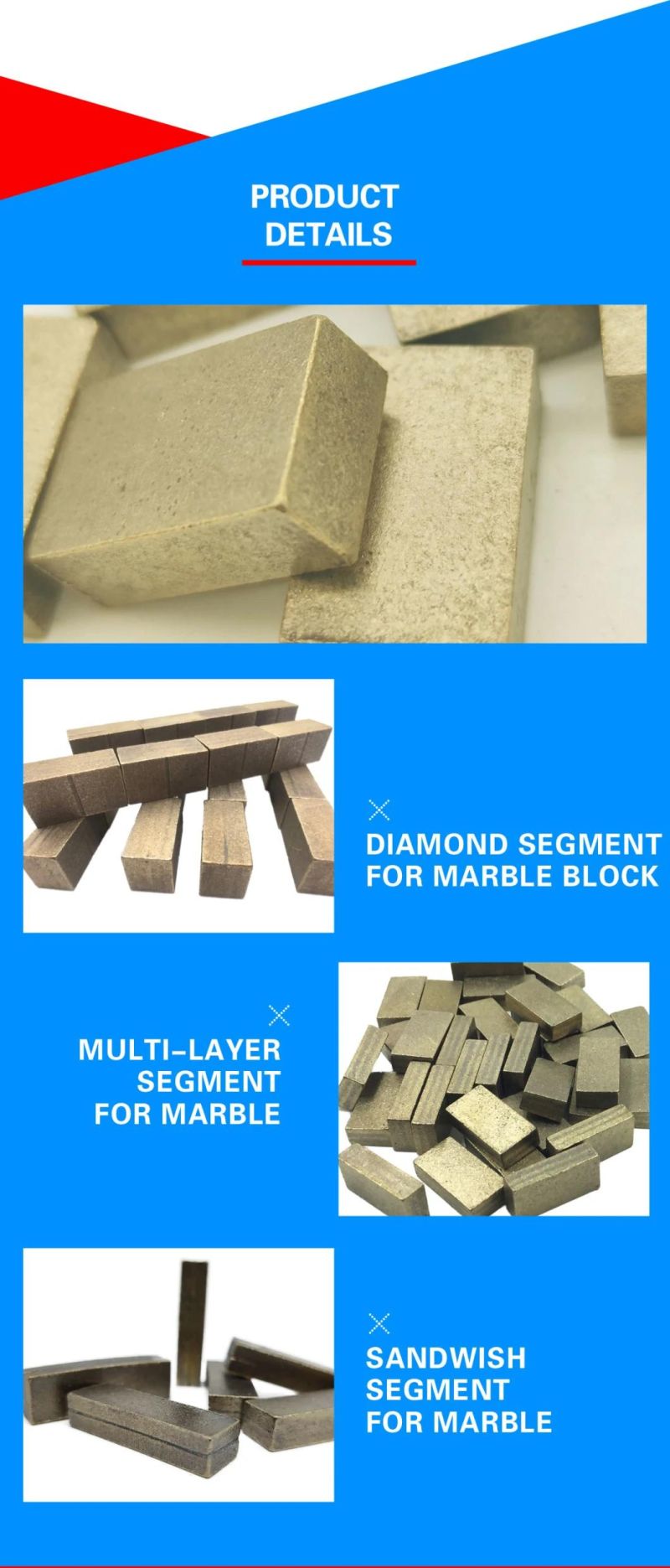

Product nameDiamond segment for stoneUse forMarble/limestone or other soft stone,etcSegment shapeRectangle/short-R,shape,etc Supply Ability6,000,000 Pcs/MonthFactoryMore than 26 years experienceDelivery time7~15days after payment received

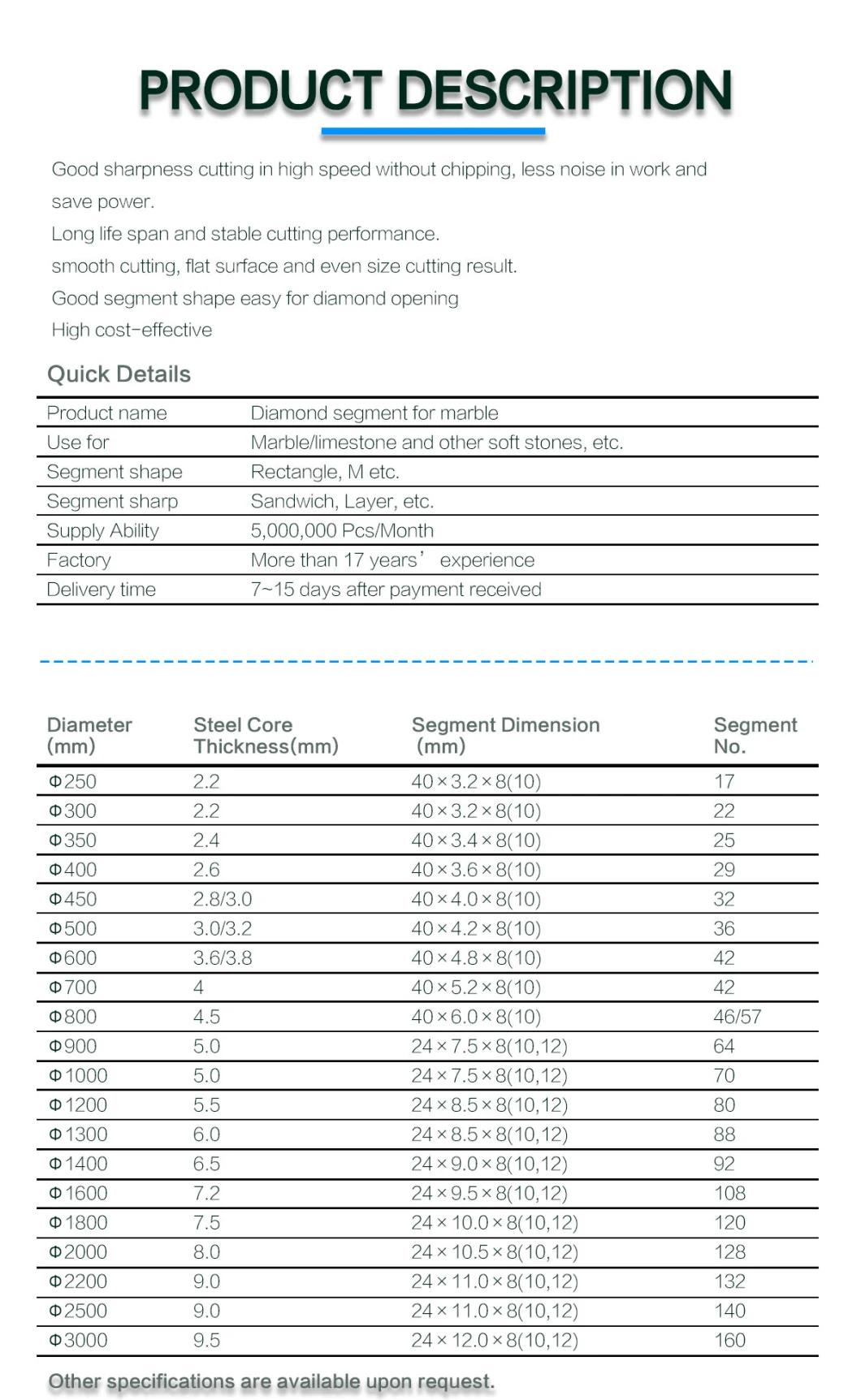

Product size

Diameter (mm)Steel Core Thickness(mm)Segment Dimension (mm)Segment No.Φ3002.240×3.2×8(10)22Φ3502.440×3.4×8(10)25Φ4002.640×3.6×8(10)29Φ4502.8/3.040×4.0×8(10)32Φ5003.0/3.240×4.2×8(10)36Φ6003.6/3.840×4.8×8(10)42Φ700440×5.2×8(10)42Φ8004.540×6.0×8(10)46/57Φ9005.0 24×7.5×8(10,12)64Φ10005.0 24×7.5×8(10,12)70Φ12005.5 24×8.5×8(10,12)80Φ13006.0 24×8.5×8(10,12)88Φ14006.5 24×9.0×8(10,12)92Φ16007.2 24×9.5×8(10,12)108Φ18007.5 24×10.0×8(10,12)120Φ20008.0 24×10.5×8(10,12)128Φ22009.0 24×11.0×8(10,12)132Φ25009.0 24×11.0×8(10,12)140Φ30009.5 24×12.0×8(10,12)160Other specifications on request available.
